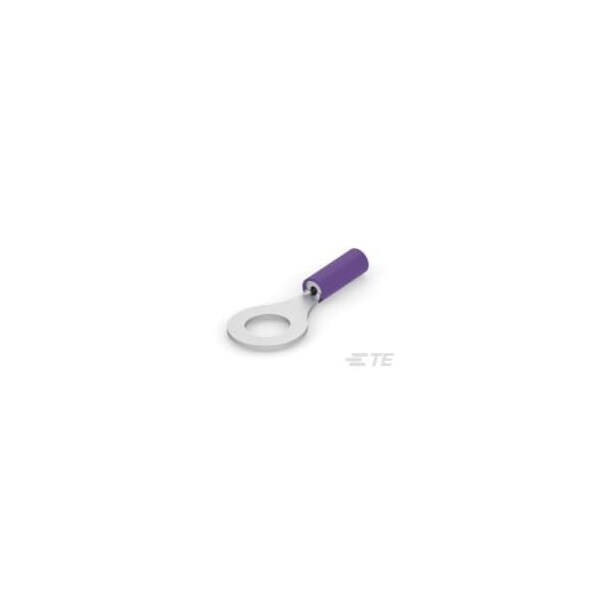

Ring Terminal, M6 Stud Size, 0.6 mm², 300 V, Nylon Insulated, Purple
Mfr # 152890
Zoro # G101052813
product price: $1.69
/ea
Sold in multiples of 42 for $70.98
Key Features
Terminal Shape
Standard Ring Tongue
Maximum Wire Size
20 AWG
Minimum Wire Size
20 AWG
Insulation Type
Nylon
Maximum Voltage
300 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 152890
- Zoro #
- G101052813
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 20 AWG
- Minimum Wire Size
- 20 AWG
- Stud Size
- M6
- Barrel Inside Dia.
- 0.084 in
- Overall Length
- 1.066 in
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Purple
- Insulation Type
- Nylon
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 105 Degrees C
- Seam
- Standard, Closed Barrel
- Wire Type
- Regular Wire
- Features
- Wire Insulation Support
- Terminal Orientation
- Straight
- Insulation Dia
- 0.045 to 0.08 in
- Contact Plating Material
- Tin
- Termination Style
- Crimp
- Insulation Coverage
- Partial Coverage
- Contact Material
- Copper
- Minimum Operating Temperature
- 0 Degrees C
- Standards
- UL & CSA Listed
