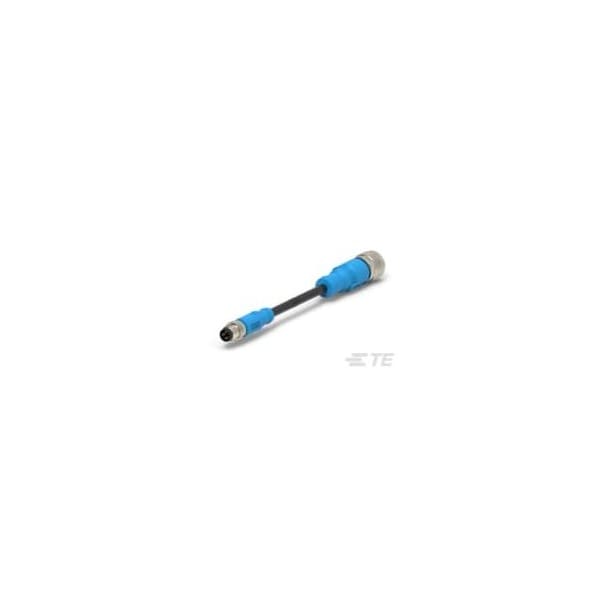

Sensor Cables / Actuator Cables M8-3Ms-0.5 M12-4Fs-Pvc
Mfr # T4052117004-001
Zoro # G405904207
product price: $16.15
/eaSold in multiples of 5 for $80.75
Key Features
Jacket Color
Black
Wire Size
24 AWG
Connector Type
Plug/Receptacle
Conductor Material
Copper Alloy
Wire Color
Brown-White-Blue-Black
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
T4052117004-001
Zoro #
G405904207
UPC #
-
Country of Origin
China
Dimensions
Wire Size
24 AWG
Overall Outside Cable Diameter
4.5 mm
Thread Size
M8 x M12
Cable Assembly Length
500 mm
Details
Jacket Color
Black
Connector Type
Plug/Receptacle
Conductor Material
Copper Alloy
Wire Color
Brown-White-Blue-Black
Insulation Material
PVC
Housing Material
GF Nylon
LED
Without
Keying
A
Number of Positions
4
Contact Current Rating
3A
Operating Voltage
30 VAC, 30 VDC
Configuration
Double-Ended
Cable Color
Black
Connector Color
Blue
Product Type
Double Ended
Assembly Type
Pigtail
Cable Assembly Type
M8 to M12
Operating Temperature Range
-25 to 85°C
Shielded
No
Item
Cordset
Description
