  13. Slide Switch, Dpdt, Latched, 0.1A, 30Vdc, Solder Terminal, Through Hole-Straight

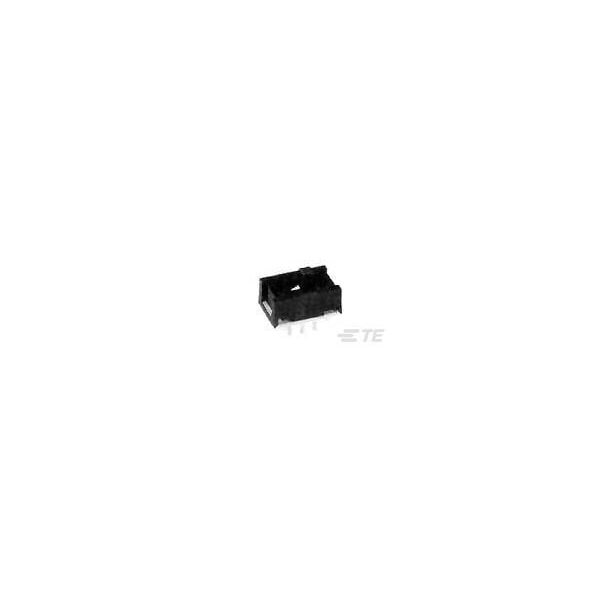

Te Connectivity Slide Switch, Dpdt, Latched, 0.1A, 30Vdc, Solder Terminal, Through Hole-Straight 1437575-5 - main

Slide Switch, Dpdt, Latched, 0.1A, 30Vdc, Solder Terminal, Through Hole-Straight

  • Mfr # 1437575-5

  • Zoro # G405933566

product price: $2.69
/ea
Sold in multiples of 40 for $107.60

Key Features

Length
.4331 in
Width
.287 in
Actuator Color
Black
Voltage Rating
30 VDC
Termination Type
PC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1437575-5
Zoro #
G405933566
UPC #
-
Country of Origin
Japan

Dimensions

Length
.4331 in
Width
.287 in
Actuator Length
.079 in
PCB Tail Length
.098 in

Details

Actuator Color
Black
Voltage Rating
30 VDC
Termination Type
PC
Actuator Style
Top
Mounting Type
Through Hole
Switch Style
Low Profile
PCB Mount Retention
With
Switch Type
Slide
Switch Contact Plating Material
Silver
Actuator Travel
.079 in
Stamped Marking
With
PCB Mount Retention Type
Solder Tail
Contact Current Rating
.1 A
UL Flammability Rating
UL 94V-0, UL 94-HB
Grade
Instrumentation
Mounting Angle
Vertical
Actuator Material
Polyacetal
Terminal Configuration
Standard
Threaded Case
Without
Product Type
Switch
Number of Actuators
Single
Number of Positions
2
Contact Base Material
Copper Alloy
Configuration (Pole-Throw)
Double Pole - Double Throw
