This item is Discontinued.

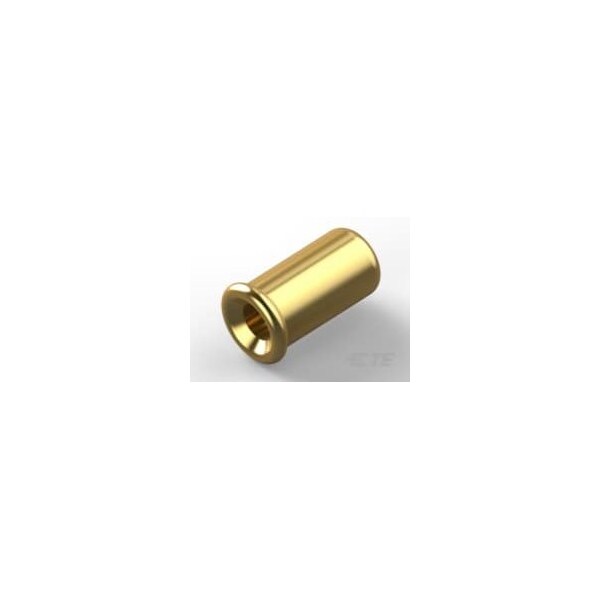

Te Connectivity SOCKET MIN-SPR W/H AU SER-4 1-332070-4

SOCKET MIN-SPR W/H AU SER-4 (Discontinued)

  • Mfr # 1-332070-4
  • Zoro # G901025246
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-332070-4
Zoro #
G901025246
UPC #
-
Country of Origin
United States

Dimensions

Contact Mating Area Plating Thickness
30 µin
Mating Pin Diameter Range
.037 to .04 in
Wire/Cable Size
19 AWG
Socket Length
.143 in
PCB Thickness (Recommended)
.031 to .125 in
Contact Spring Plating Thickness
30 µin
Hole Size (Recommended)
.072 in

Details

Insertion Method
Hand/Semi-Automatic
Contact Type
Socket
Sleeve Style
Open Bottom
Profile
Zero
Contact Base Material
Beryllium Copper
Connector System
Cable-to-Board
Sleeve Material
Copper
Product Type
Contact
Sleeve Plating Material
Gold Flash over Nickel
Connector & Contact Terminates To
Printed Circuit Board
Termination Method to Wire & Cable
Solder
Contact Current Rating (Max)
7.5 A
Socket Type
Discrete
Termination Method to Printed Circuit Board
Through Hole - Press-Fit
Circuit Application
Power & Signal
Contact Transmits (Typical)
Signal (Data)/Power
Wire/Cable Type
Discrete Wire
Spring Material
Beryllium Copper
Operating Temperature Range
-65 to 125 °C
Contact Spring Plating Material
Gold
