Shop TE CONNECTIVITY

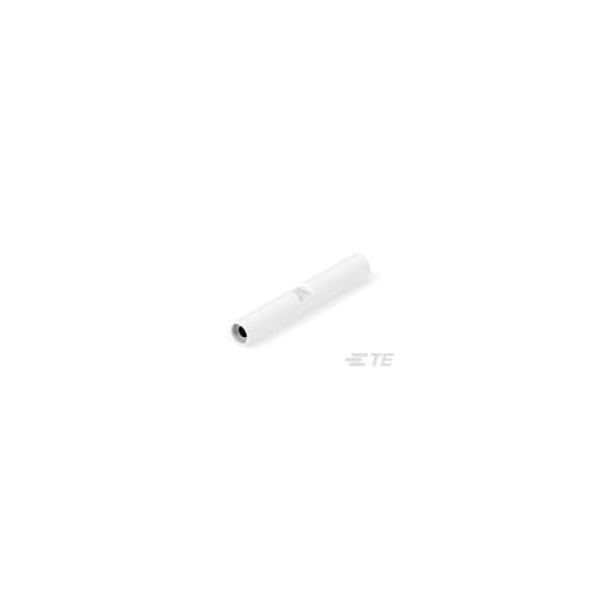

SPLICE BUTT PVF2 PIDG 22-16

  • Mfr # 696427-1

  • Zoro # G000976531

product price:  $1.95
/ea
Sold in multiples of 150 for $292.50

Key Features

Type
Butt Splice
Color
Red
Minimum Wire Size
22 AWG
Insulation Material
PVF2
Maximum Operating Temperature
150 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
696427-1
Zoro #
G000976531
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Overall Length
1.265 in
Wire Insulation Diameter (Max)
.125 in
Barrel Inside Diameter (Min)
.129 in

Details

Item
Wire Connector
Type
Butt Splice
Color
Red
Insulation Material
PVF2
Maximum Operating Temperature
150 Degrees C
Material
Copper
Finish
Tin
Support Style
Insulation Support
Terminal & Splice Style
Splice
Number of Serrations
8
Wire/Cable Type
Discrete Wire
Heavy Duty
No
Barrel Type
Closed Barrel
Wire Insulation Support
With
Contact Plating Material
Tin
Discrete Wire Type
Stranded
Barrel Style
Standard
Insulation Support Sleeve Material
Copper
Serrated
Yes
Sealable
No
