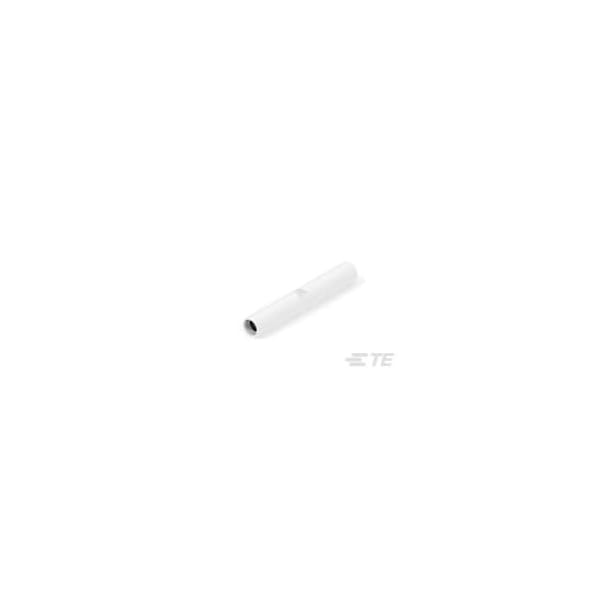

SPLICE BUTT PVF2 PIDG 24-20
Mfr # 696426-1
Zoro # G500976673
product price:Â $1.85
/ea
Sold in multiples of 46 for $85.10
Key Features
Type
Butt Splice
Color
White
Minimum Wire Size
24 AWG
Insulation Material
PVF2
Maximum Operating Temperature
150 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 696426-1
- Zoro #
- G500976673
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 20 AWG
- Minimum Wire Size
- 24 AWG
- Overall Length
- 1.035 in
- Wire Diameter Range
- .04 to .1 in
- Barrel Inside Diameter (Min)
- .043 in
Details
- Item
- Wire Connector
- Type
- Butt Splice
- Color
- White
- Insulation Material
- PVF2
- Maximum Operating Temperature
- 150 Degrees C
- Material
- Copper
- Finish
- Tin
- Contact Plating Material
- Tin
- Serrated
- Yes
- Insulation Support Sleeve Material
- Copper
- Barrel Type
- Closed Barrel
- Number of Serrations
- 8
- Wire Insulation Support
- With
- Barrel Style
- Standard
- Sealable
- No
- Support Style
- Insulation Support
- Wire/Cable Type
- Discrete Wire
- Discrete Wire Type
- Stranded
- Terminal & Splice Style
- Splice
