Shop TE CONNECTIVITY

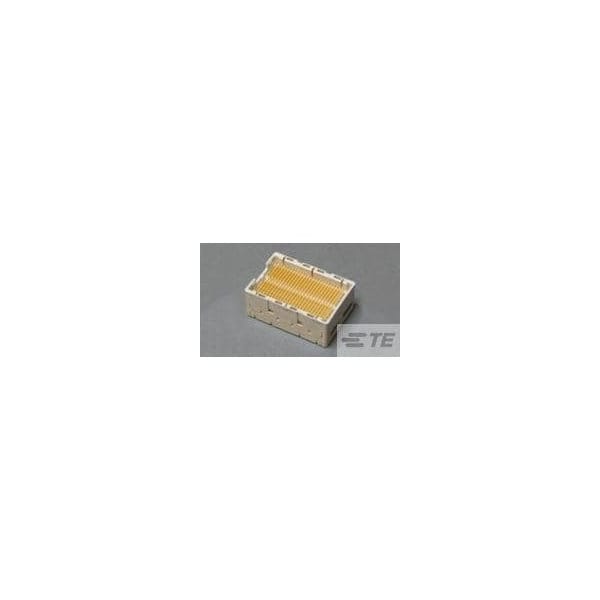

STEP-Z PLUG 15MM 200P PB ST

  • Mfr # 1-1761614-5

  • Zoro # G100945628

product price:
$
18.59
/ea
Sold in multiples of 4 for $74.36

Key Features

Insulation Material
Thermoplastic
Max. Voltage
48V AC
Maximum Voltage
48 V AC
Application
Signal
Current
1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1761614-5
Zoro #
G100945628
UPC #
-
Country of Origin
United States

Dimensions

Height
15.95 mm
Contact Plating Thickness
29.9212 µin

Details

Item
PCB Mount Header
Insulation Material
Thermoplastic
Max. Voltage
48V AC
Maximum Voltage
48 V AC
Application
Signal
Current
1 A
Maximum Operating Temperature
100 Degrees C
Hole Center to Center
1.3 mm
Connection Material
Copper Alloy
For Use With
Receptacle Assembly
Terminal Type
Through Hole - Solder
Max. Temp.
100°C
Material
Thermoplastic
Number of Rows
18
Contact Type
Tab
Number of Contacts
200
Contact Finish
Gold Plated
Current Rating
1 A
Terminal Finish
Tin-Lead
Connector Terminates To
Printed Circuit Board

Documents & Resources
