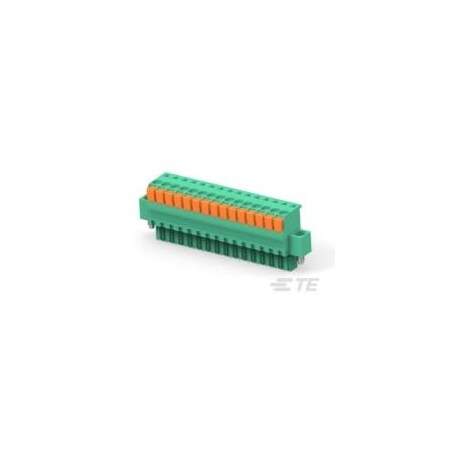

STR PLUG SPRING TYPE RH 15P 3.50mm (Discontinued)
- Mfr # 1-1986723-5
- Zoro # G000945742
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1-1986723-5
Zoro #
G000945742
UPC #
-
Country of Origin
Italy
Details
Number of Positions
15
Mounting Angle
Vertical
Shrouded
No
Side Stackable
No
Threaded Flange
With
Wire Entry Angle
Top
Voltage (VAC)
300
Connector Style
Plug
Current Rating (Max) (A)
9, 11
Number of Rows
1
Lever Color
Orange
Contact Mating Area Plating Material
Tin over Copper Alloy
Screwless Terminal Block
Yes
Block Type
Straight
Mating Angle
90° (Bottom)/ 270° (Top)
Wire Range
.05 to 2 mm² [ 30 to 14 AWG ]
Housing Material
Polyamide
Screw Flange
With
Centerline
3.5 mm [ .138 in ]
Applies To
Printed Circuit Board
Housing Color
Green
Contact Base Material
Copper Alloy
