  11. TERMI-BLOK PCB MOUNT 9P. 5
This item is Discontinued.

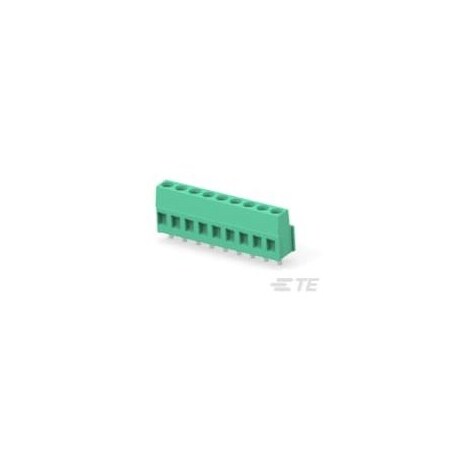

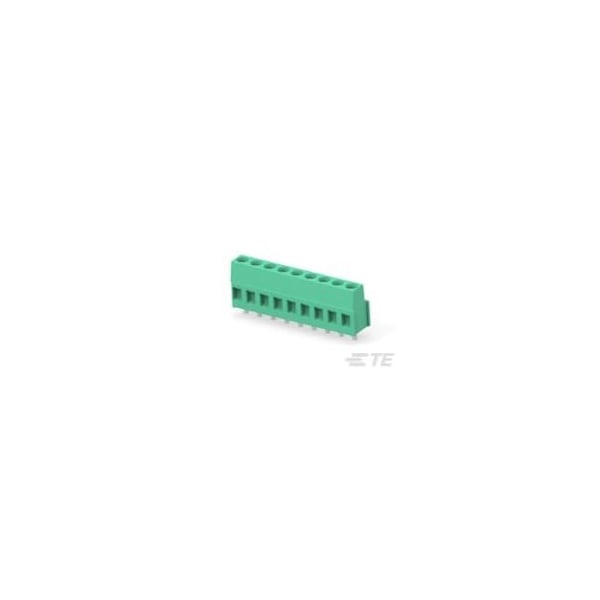

Te Connectivity TERMI-BLOK PCB MOUNT 9P. 5 282841-9

TERMI-BLOK PCB MOUNT 9P. 5 (Discontinued)

  • Mfr # 282841-9
  • Zoro # G600930117
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
282841-9
Zoro #
G600930117
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
3.5 mm [ .138 in ]

Details

Applies To
Printed Circuit Board
Centerline
5.08 mm [ .2 in ]
Screwless Terminal Block
Yes
Block Type
None
Screw Material
Brass
Stacked Levels
Without
Number of Positions
9
Contact Mating Area Plating Material
Tin
Contact Mount
Through Hole
Wire Entry Angle
Side
Screw Plating Material
Nickel
Contact Base Material
Brass
Voltage (VAC)
300
Closed End
Without
Mounting Angle
Vertical
Number of Rows
1
Screw Flange
Without
Current Rating (Max) (A)
17.5
Wire Range
.05 to 3 mm² [ 30 to 12 AWG ]
Interlock
With
Housing Color
Green
Housing Material
PA 6.6
Connector Style
Receptacle
Side Stackable
No
