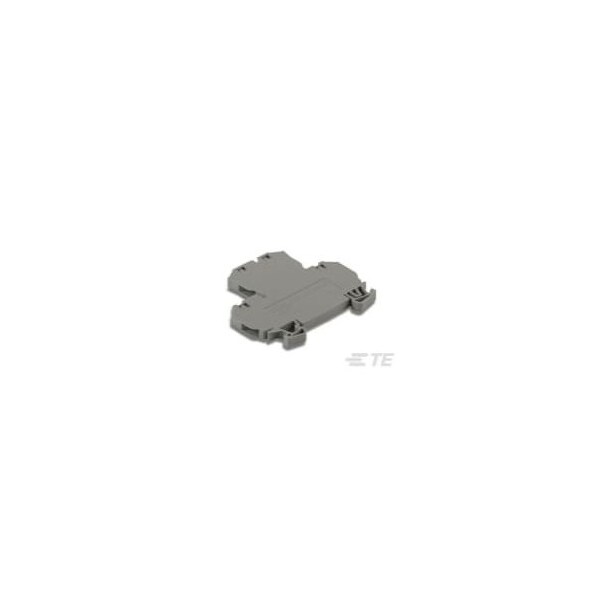

Terminal Block, 20 A, 600 V AC, 12 AWG
Mfr # 2271693-3
Zoro # G405797885
product price: $8.15
/eaSold in multiples of 20 for $163.00
Key Features
Mounting Type
DIN
Connection Type
Quick Connect
Current
20 A
Maximum Voltage
600 V AC
For Minimum Wire Size
22 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2271693-3
Zoro #
G405797885
UPC #
-
Country of Origin
China
Dimensions
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Screw Size
M2.6
Details
Item
Terminal Block
Mounting Type
DIN
Connection Type
Quick Connect
Current
20 A
Maximum Voltage
600 V AC
Number of Circuits
2
Modular Terminal Block Product Type
Screw Terminal Block
Operating Temperature Range
-40 to 105°C
Contact Base Material
Copper Alloy
Block Type
Standard
UL Flammability Rating
UL 94V-0
Screw Base Material
Steel
Circuit Application
Power
Tightening Torque
5 in-lbs
Contact Current Rating (Max)
20 A
Screw Plating Material
Zinc
Contact Plating Material
Tin
Centerline (Pitch)
.197 in
Number of Positions
2
Sealable
No
