Te Connectivity

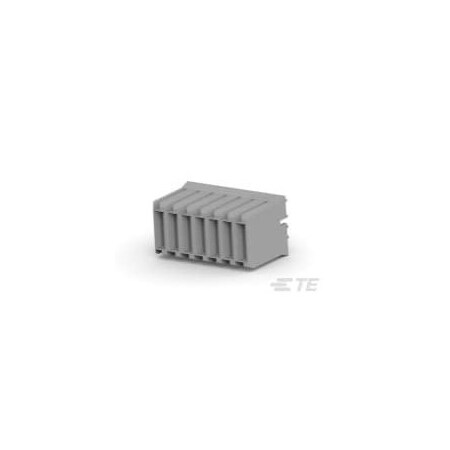

UPM EXPANDED RCPT ASSEMBLY

product price: $8.15
/ea
Sold in multiples of 243 for $1,980.45
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Gray
  • Max. Voltage 250V AC/DC
  • Application Power
  • Terminal Type Through Hole - Press-Fit
  • Max. Temp. 125°C
See all product information

Product Information

Details

Color Gray
Max. Voltage 250V AC/DC
Application Power
Terminal Type Through Hole - Press-Fit
Max. Temp. 125°C
Item Connector Assembly
Connection Material Copper Alloy
Material Glass-Filled Polyester
Standards UL E28476
Hole Center to Center 3 mm
Contact Type Socket
Contact Finish Noble Metal Plated
Number of Contacts 7
Number of Rows 1
Current Rating 16 A
Terminal Finish Tin Plated
Flammability Rating UL 94 V-0
Contact Plating Thickness 0.5 to 1.25 µm
Connector Terminates To Printed Circuit Board
