This item is Discontinued.

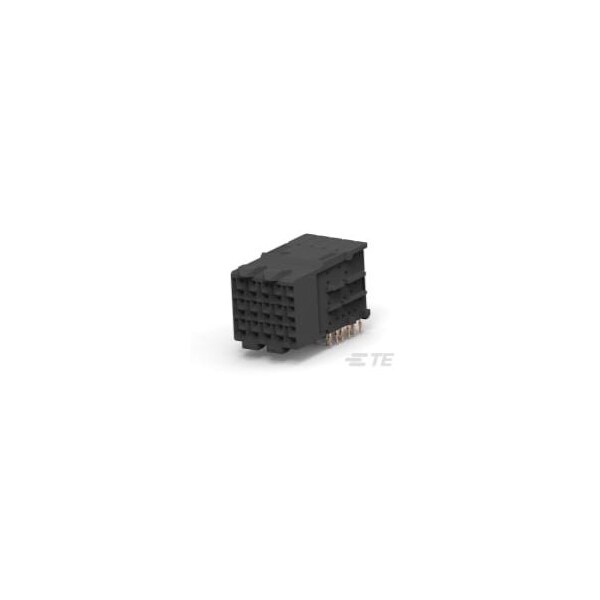

Te Connectivity ZP HS3 DB 06R REC 030P CT PD 5120787-1

ZP HS3 DB 06R REC 030P CT PD (Discontinued)

  • Mfr # 5120787-1
  • Zoro # G000979921
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5120787-1
Zoro #
G000979921
UPC #
-
Country of Origin
China

Dimensions

Width
.555 in
Length
.511 in
Height
.47 in
Termination Post Length
.089 in
Tail Length
.083 in, .055 in
Contact Mating Area Plating Thickness
19.68µin
PCB Thickness (Recommended)
1.4 mm
PCB Hole Diameter
.002 in

Details

Number of Positions
30
For Use With
Receptacle Assembly
Mating Retention
Without
Contact Mating Area Plating Material
Tin
Make First / Break Last
No
Mating Alignment
With
PCB Mount Retention Type
Action/Compliant Tail
UL Flammability Rating
UL 94V-0
Contact Transmits (Typical)
Signal (Data)
Differential Signaling
No
Contact Base Material
Copper Alloy
Connector Mounting Type
Board Mount
Sealable
No
PCB Contact Termination Area Plating Material
Tin
Number of Differential Pairs per Column
3
Housing Material
Polyester - GF
Contact Type
Socket
Housing Color
Black
Preloaded
Yes
Module Type
Center
Contact Underplating Material
Nickel
Number of Columns
5
Connector Style
Receptacle
Termination Method to Printed Circuit Board
Through Hole - Press-Fit
Row-to-Row Spacing
.078 in
Operating Voltage
250 VAC
Connector & Contact Terminates To
Printed Circuit Board
Contact Current Rating (Max)
1.15 A
PCB Mount Retention
With
Circuit Application
Signal
Board-to-Board Configuration
Right Angle
Centerline (Pitch)
.079 in
Contact Design
Dual Beam
Operating Temperature Range
-85 to 221°F
Mating Alignment Type
Polarization
Shrouded
Unshrouded
Connector System
Board-to-Board
Number of Rows
6
PCB Contact Termination Area Plating Material Finish
Matte
Contact Style
Press-Fit, Short Tail
Product Type
Connector
Shield Material
Phosphor Bronze
PCB Mount Orientation
Right Angle
