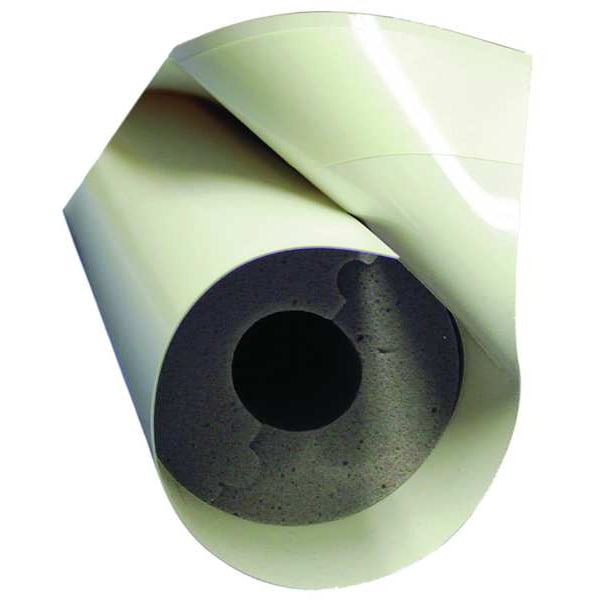

Pipe Insulation, 4 ft. L, Melamine Foam, 1 in Wall

  • Mfr # 0879-0200IP100-PF-0920-01

  • Zoro # G2152491


product price: $95.89
/ea
Free Shipping & Returns

Key Features

Wall Thickness
1 in
Length
4 ft.
For Iron Pipe Size
2"
Material
Melamine Foam
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0879-0200IP100-PF-0920-01
Zoro #
G2152491
UPC #
-
Country of Origin
United States

Dimensions

Wall Thickness
1 in
Length
4 ft.
For Iron Pipe Size
2"
Wall Thickness - Insulation
1 in
Fits Pipe Size - Pipe Insulation
2 in
Insulation Length
4 ft
Fits Pipe Size
2 in
Jacket Thickness
0.02 in
Inside Diameter
2 3/8 in
Overall Length
4 ft
For Pipe Size
2 in

Details

Material
Melamine Foam
Item
Pipe Insulation
Color
White
Insulation Temp. Range
-40 Degrees F to 350 Degrees F
Pipe Insulation Item
Pipe Insulation
Approx. R Value
5.12
Insulation Type
Hinged with Self Sealing Lap
Insulation Nominal I.D.
2 3/8 in
Insulation Approx. R Value
5.12
Includes
Factory Laminated 800 Series Jacket - 0.020 in Thick, Smooth, Semi-Rigid PVC Jacket with 2 in Self Sealing Lap
Insulation Approx. K Value
0.25
Temp. Range
-40 Degrees to 350 Degrees F
Standards
ASTM E84
Insulation Body Material
Melamine Foam
Density
0.44 +/- 0.19 lb/cu ft
Features
Excellent Antibacterial and Wash Down Properties
Clean Room Class
Fed. Std. 100
Foam Cell Type
Open
Plenum Rating
Plenum Rated
Market
Industrial
For Location
Indoor
Smoke Developed Index
50
For Piping System
Pharmaceuticals
Tube Style
Hinged
Sealing Method
Silicone Sealant
Installation Style
Slit with Adhesive
R Value
5.12
Flame Spread Index
25
Flexibility
Flexible
K Value
0.27 BTU @ 75 Degrees F
Form
Tube
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
350 Degrees F
Facing Material
PVC Jacket

Description

Pipe Insulation, Insulation Material Melamine, Installation Style Slit with Adhesive, Inside Diameter 2 3/8 in, Wall Thickness 1 in, Overall Length 4 ft, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 350 Degrees F, Facing Material PVC Jacket, Color White, R Value 5.12, Form Tube, For Pipe Size 2 in, Flame Spread Index 25, Smoke Developed Index 50, Foam Cell Type Open, Plenum Rating Plenum Rated, Flexibility Flexible, For Tube Outside Diameter Not Applicable
