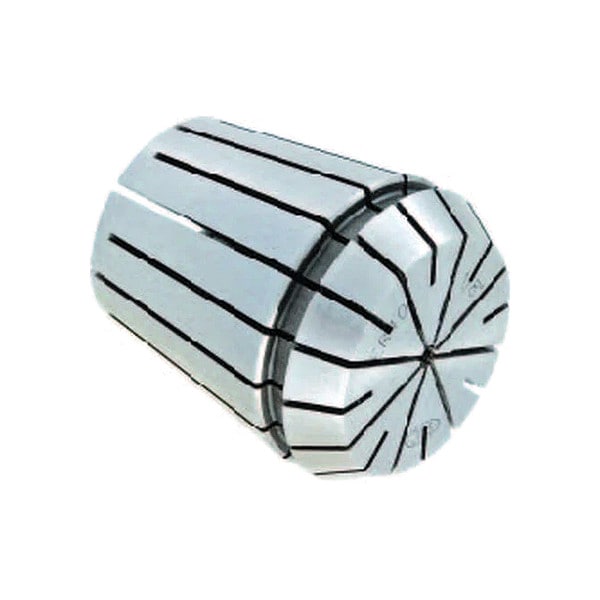

ER Collet, ER11, 3/16 in.

  • Mfr # 04211-3/16

  • Zoro # G9405487

product price:  $30.89
/ea

Key Features

Collet Series
ER11
Range
0.148" to 0.187"
For Use With
AR Collet Series, BR Collet Series, DR Collet Series, ESX Collet Series, RD Collet Series
Coolant Through
Yes
Coolant Fed
Coolant Through
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
04211-3/16
Zoro #
G9405487
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Size
3/16"
Min. Size
0.1480 in
Max. Body Dia.
3/16 in
Overall Length
45/64 in
Outside Diameter - Maximum
0.45 in
Clamping Hole Length
45/64 in
Wire Rope Length
45/64 in

Details

Item
Collet
Collet Series
ER11
Range
0.148" to 0.187"
For Use With
AR Collet Series, BR Collet Series, DR Collet Series, ESX Collet Series, RD Collet Series
Coolant Through
Yes
Coolant Fed
Coolant Through
Number of Slots
8
Measurement System
Inch
Collet Type
Standard
Compatible with Product Type
AR, BR Series, DR, ESX, RD
Face Shape
Round
TIR Max.
0.0002 in
Material
High-Carbon Steel
Taper Angle
8 Degrees
T.I.R. Tolerance
0.0002 in
Finish
Precision Ground
Torque - Maximum
17 ft-lb
Collapse Range - Maximum
0.187 in
Bore Shape
Round
Compatible Collet Chuck
AR, BR, DR, ESX, RD
Operating Pressure - Maximum
2,000 psi
Collapse Range - Minimum
0.148 in

Description

Collet, ER11, Round, Overall Length 45/64 in
