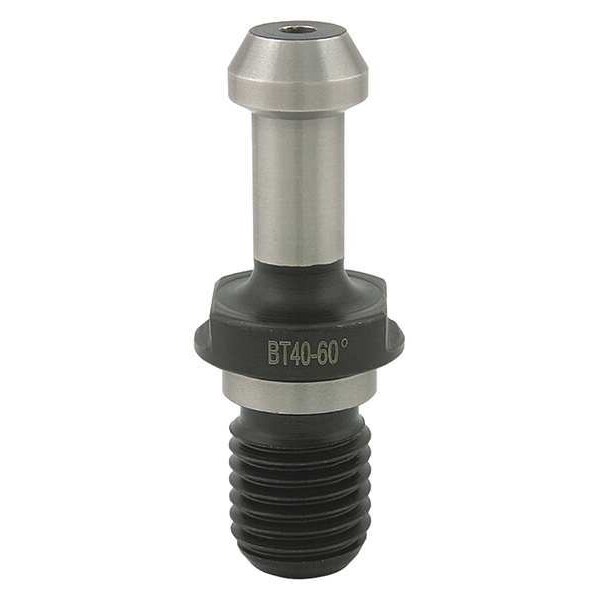

Retention Knob, 2.36 in. L, 0.90 in. dia.
Mfr # 17820
Zoro # G9406573
product price:Â $30.69
/eaKey Features
Overall Length
2.359 in
Material
Steel
Length
2.36"
For Use With
BT40 Tool Holders
Features
All Mating Surfaces Precision Ground, Hardened for Maximum Longevity
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
17820
Zoro #
G9406573
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Overall Length
2.359 in
Length
2.36"
Size
2.36"
Dia.
0.90"
Neck Dia. (In.)
0.393
Flange to Angle Length
28.00mm
Taper Size
BT40
Neck Dia.
0.3930 in
Flange Thickness
17 mm
Thread Size
M16
Angle Radius
60 Degrees
Coolant Hole Diameter
4 mm
Flange to Beginning of Knob Length
28 mm
Flange to End of Knob Length
35 mm
Knob Outside Diameter
15 mm
Neck Diameter
10 mm
Description
Retention Knob, Taper Size BT40, Thread Size M16, Angle Radius 60 Degrees , Coolant Fed Coolant Through, Features All Mating Surfaces Precision Ground, Hardened for Maximum Longevity
