  11. TG 150 27/64" Collet
Techniks TG 150 27/64" Collet 04011-27/64 - main

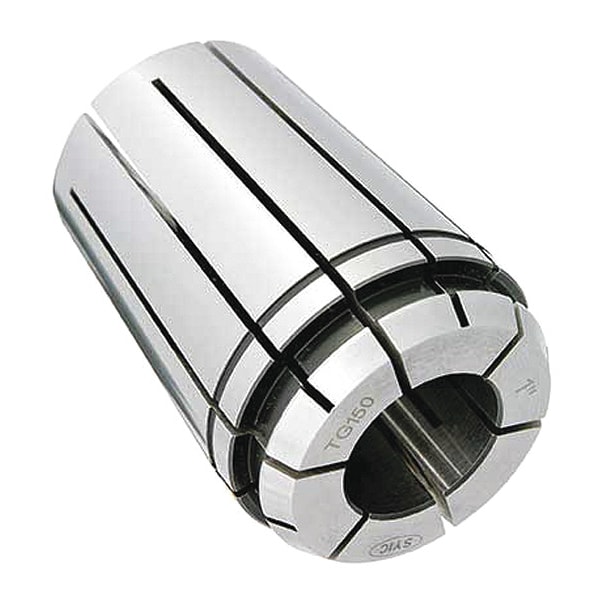

TG 150 27/64" Collet

  • Mfr # 04011-27/64

  • Zoro # G8331069

product price: $40.59
/ea

Key Features

Collet Series
TG150
Face Shape
Round
Coolant Fed
Non-Coolant Through
Standards
ANSI, DIN 6499 Class 2, ISO
Material
High-Carbon Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
04011-27/64
Zoro #
G8331069
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Size Increments
0.0400 in
Max. Bore Dia.
7/32 in
Overall Length
3 in
Max. Body Dia.
2.0010"
Head Dia.
2.0010"
Outside Diameter - Maximum
2.001 in

Details

Item
Collet
Collet Series
TG150
Face Shape
Round
Coolant Fed
Non-Coolant Through
Standards
ANSI, DIN 6499 Class 2, ISO
Material
High-Carbon Steel
Collet Type
Standard
For Shank Type
Straight
Number of Slots
8
Taper Angle
16 Degrees
Compatible with Product Type
Collet Nuts
Compatible with Brand
Kennametal
Measurement System
Inch
Features
.0004" T.I.R.
Color
Silver
Number of Coolant Holes
0
Material - Machining
High Speed Steel
TIR Max.
0.0004"
For Use With
Powercoat Nut
Collapse Range - Maximum
0.4219 in
Finish
Precision Ground
Operating Pressure - Maximum
2,000 psi
Bore Shape
Round
T.I.R. Tolerance
0.0004 in
Collapse Range - Minimum
0.4063 in

Description

Collet, TG150, Round, Max. Size Not Applicable, Overall Length 3 in, ANSI, DIN 6499 Class 2, ISO
