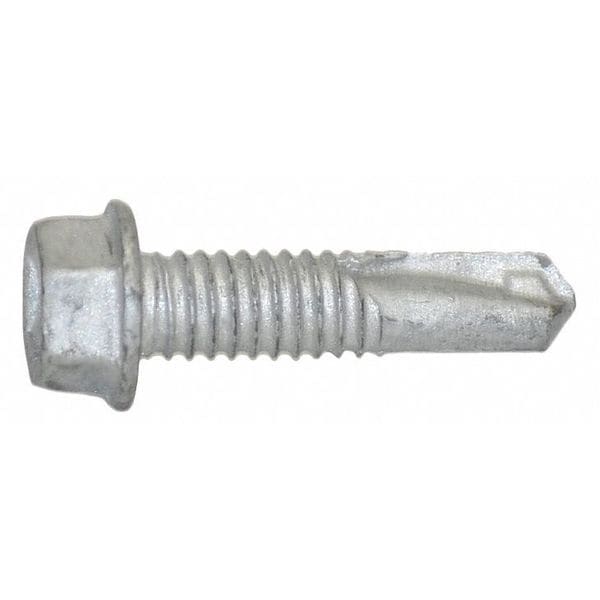

Self-Drilling Screw, #12 x 7/8 in, Climaseal Steel Flange Hex Head External Hex Drive, 500 PK
Mfr # 1088000
Zoro # G4990885
CAD Available
product price:Â
$
143.99
/pk 500, $0.29/ea
Free Shipping & Returns
Key Features
Flange Hex Head
External Hex Drive
Drilling Tip
CAD Drawing
System of Measurement
Inch
Fastener Length
7/8 in
Drive Size
5/16 in
Material
Steel
Finish
Climaseal
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1088000
- Zoro #
- G4990885
- UPC #
- 092097921849
- Country of Origin
- United States
Dimensions
- Screw Size
- #12
- Fastener Length
- 7/8 in
- Drive Size
- 5/16 in
- Hex Width
- 0.313 in
- Head Dia.
- 0.415 in
- Head Height
- 0.193 in
- Drill Point Size
- 4
- Washer Outside Diameter
- 0.415 in
- Maximum Drilling Thickness
- 0.25 in
- Overall Length
- 7/8 in
- Head Width
- 0.313 in
- Maximum Head Width
- 5/16 in
- Drill Tip Length
- 3/8 in
- Maximum Head Height
- 3/16 in
- Thread Size
- #12-24
- Wire Rope Length
- 7/8 in
- Length
- 7/8 in
Description
The TEKS - 1088000 is a Self-Drilling Screw, a type of fastener equipped with a drill point at the end. This feature enables it to penetrate materials, potentially eliminating the need for pre-drilled holes. It's commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly where a method of fastening that may reduce labor time and effort is desired.
- Application: Can be used for attaching accessories to structural steel or bar joist, clips to structural steel or bar joist, liner panels to structural steel or bar joist. Longer screws may also fit in retrofit clip and sheet applications.
- CAD Available: A Computer-Aided Design (CAD) file is provided with this screw which could assist professionals in incorporating its dimensions into their digital project plans.
- Drive & Size: Requires an external hex tool with a drive size of 5/16 inch for installation or removal.
- Fastener Length: The total length from its point to the underside of the head measures 7/8 inch; this might influence how deeply it penetrates when joining materials.
- Finish: Features a Climaseal coating that aims at improving durability and corrosion resistance while potentially offering functional benefits such as an enhanced grip during installation.
- Material & Grade/Class: Constructed from Steel grade C1022 intended for use where strength, durability and some level of corrosion resistance are needed in certain industrial settings
- Screw Size: #12 diameter screw intended for use where secure fastening is needed in a variety of industrial settings.
