Rolling Work Platform, 100 in. L

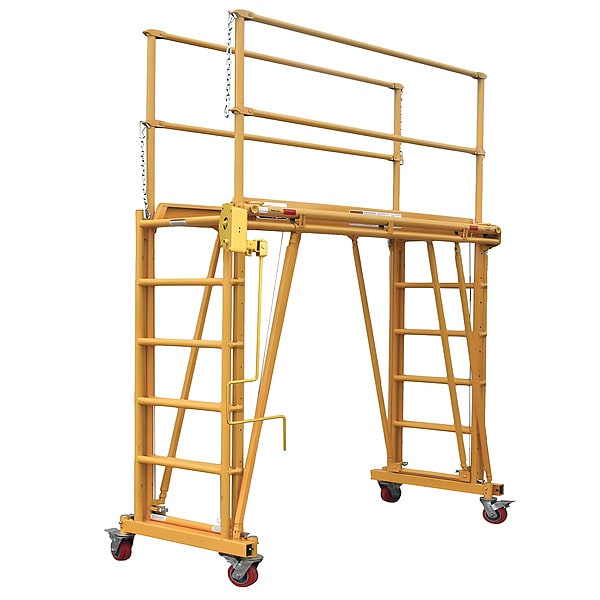

The TELE-TOWER 1101-2296 is a rolling scaffold tower platform constructed of painted steel with telescoping sections. The platform measures 22 in wide x 96 in deep. Overall depth is 104 in and base depth is 100 in. The maximum working height is 18 ft. The unit is finished in yellow, weighs 520 lb, and includes guardrails, handrails, and a toeboard.

Key Features:

• Item: Scaffold Tower, Series: Tele-tower
• Platform width: 22 in; platform depth: 96 in; platform material: steel; platform style: dual access
• Platform height range: 24 in to 132 in (2 ft to 11 ft)
• Overall height range: 6 ft 6 in to 14 ft 8 in
• Working height - maximum: 18 ft
• Rated load capacity is 800 lb (maximum permitted load: 1,000 lb).
• Frame/material: steel; finish: painted; color: yellow
• Number of sections included: 2 (maximum sections: 2); number of modular decks: 1
• Number of legs: 4; number of guard rails: 4; guardrail height: 3.6 ft; handrail height: 43 in; handrails included: yes
• Toeboard included; toeboard height: 4 in
• Base depth: 100 in; overall depth: 104 in; bottom width: 34 in; overall width - maximum: 35 in
• Caster diameter: 5 in; weight: 520 lb; number of steps: 0; step width: 22 in
• Features include telescoping sections. Height adjustment range and width adjustment range are limited to the specified configurations (height: 24 in to 132 in; overall width max: 35 in).
• For use with: Mfr. No. 1177-22, 3234, 1027, 1154, 2117, 1061M
• Standards: ANSI, OSHA
