This item is Discontinued.

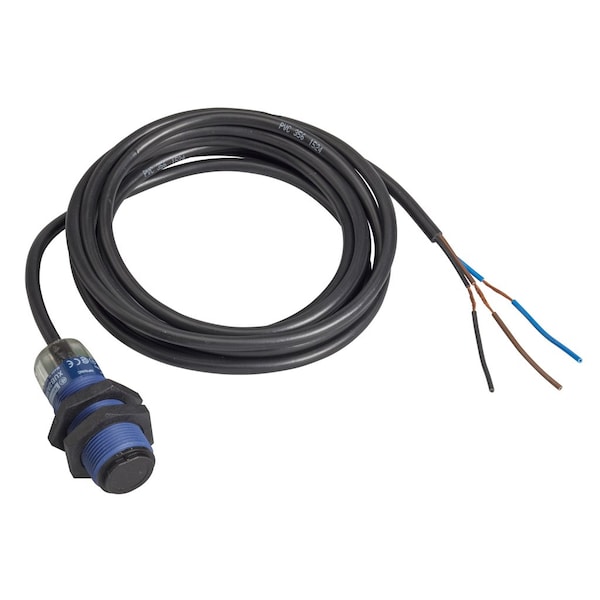

Telemecanique Sensors 18Mm Dc Recpnpfront 2M Cable Plastic No XUB2APANL2R

18Mm Dc Recpnpfront 2M Cable Plastic No (Discontinued)

  • Mfr # XUB2APANL2R
  • Zoro # G0563739
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUB2APANL2R
Zoro #
G0563739
UPC #
785901605331
Country of Origin
Multiple

Dimensions

Length
46 mm
Proximity Sensor Diameter
18 mm
Overall Height
46 mm
Overall Diameter
18 mm
Cable Length
2 m

Details

Item
Cylindrical Proximity Sensor
Proximity Sensor Style
Photo-Electric Sensor; Cylindrical M18
Measurement Range
15 to 20 m
Proximity Sensing Method
Infrared Thru Beam
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC Solida State PNP
Output Mode
1 NO
Max. Detecting Distance
20 m
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 500 Hz
Max. Current Load
35 mA
IP Rating
IP65, IP67
Standards
CE, CSA, UL Listed
Electrical Connection
Bare Wire
Description/Special Features
Without Sensitivity Adjustment; 1 LED Yellowoutput State
Operating Temp. Range
-25 to 55 Degrees C
Application
general purpose single mode
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Maximum Delay Recovery
1 ms
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Maximum Delay Response
1 ms
Maximum Voltage Drop
<1.5 V closed state)
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Supply Voltage Limits
10-36 V DC
Maximum Delay First Up
15 ms
Switching Capacity
<= 100 mA overload and short-circuit protection)
Series
XUB
Storage Temp. Range
-40-70 °C
DC Voltage Rating
12-24V DC
Style
Cylindrical
Includes Indicator Lights
Indicator Lights Included
Output Circuit Type
PNP
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
500 Hz
Sensing Distance - Maximum
20 m
Operating Temperature - Maximum
131 Degrees F
Output Circuit Contact Form
NO
Body Material
PBT
Electrical Installation Type
Prewired Cable
AC Voltage Rating
Not Rated
Output Circuit Number of Wires
3

Description

Cylindrical Proximity Sensor, IP Rating IP65, IP67, Standards CE, CSA, UL Listed
