This item is Discontinued.

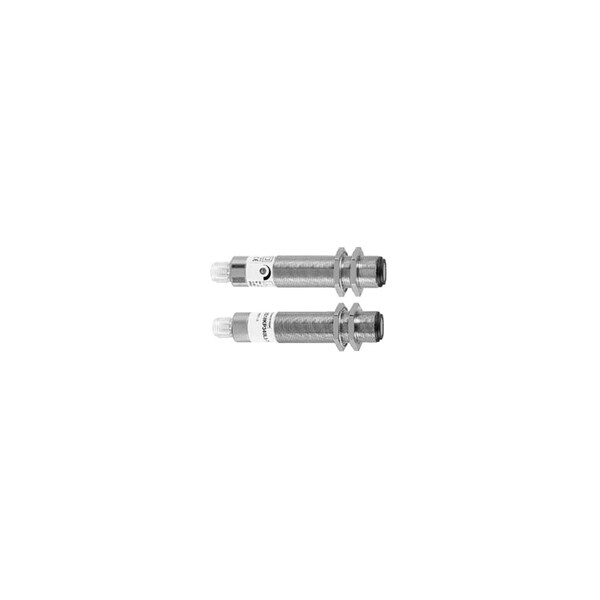

Telemecanique Sensors 18Mm Photo 24Vdc XU2S18PP340D

18Mm Photo 24Vdc (Discontinued)

  • Mfr # XU2S18PP340D
  • Zoro # G0681497
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XU2S18PP340D
Zoro #
G0681497
UPC #
785901907398
Country of Origin
France

Dimensions

Overall Width
24 mm
Overall Height
92 mm

Details

Item
Photoelectric Sensor
Standards
EN/IEC 61496-1 || EN/IEC 61496-2 || EN/IEC 60825-1
Response Time
1 msec
Material
nickel plated brass case || PMMA (polymethyl methacrylate) lenses
Features
Scratch-Resistant Lens, Double Insulation, PBT Case
Body Material
Brass
IP Rating
IP67
Series
XU2
Output Type
1 safety outputs OSSD PNP
Detection System
transmitter-receiver system
Product Or Component Type
safety thru-beam pair photo-electric sensors
Ip Degree Of Protection
IP67 conforming to EN/IEC 60529
Safety Level
can reach PL = c associated with module XPSCM correctly wired EN/ISO 13849-1 || can reach category 2 associated with module XPSCM correctly wired EN/ISO 13849-1 || type 2 IEC 61496-1-2
Line Of Sight Type
along case axis
Current Consumption
<= 35 mA no-load
Function Available
built-in muting function || light or dark programmable switching
Maximum Voltage Drop
<1.5 V closed)
Electrical Connection
M12
Ambient Air Temperature For Operation
-25-55°C
[Us] Rated Supply Voltage
12...24 V DC 10...30 V reverse polarity protection
Maximum Delay Response
1 ms
Maximum Delay Recovery
1 ms
Shock Resistance
30 gn 3 axes : 3 times EN/IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Switching Frequency
500 Hz
Tightening Torque
24 N.m fixing nut || 2 N.m connector
Marking
CE
Device Short Name
XU2S
[Sn] Nominal Sensing Distance
8-8 m
Vibration Resistance
7 gn 10-55 Hz)EN/IEC 60068-2-6
DC Voltage Rating
12-24V DC
Product Type
Photoelectric Sensor
Includes Indicator Lights
Indicator Lights Included
Load Current - Maximum
100 mA
Number of Pins
4
Orientation
Right Angle
Operating Mode
Selectable Light On/Dark On
Electrical Installation Type
Direct Connector
Operating Temperature - Maximum
131 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Sensing Method
Through-Beam

Description

Photoelectric Sensor
