  15. 1NC/1NO Compact Limit Switch Body Nema 1, 4, 12 IP 65

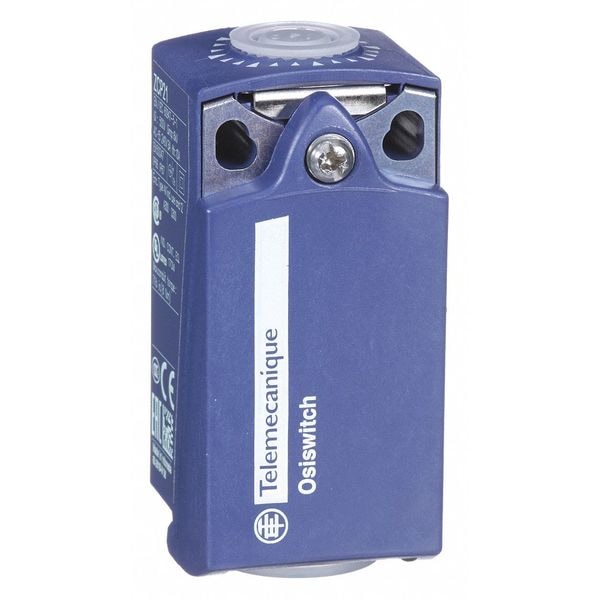

Telemecanique Sensors 1NC/1NO Compact Limit Switch Body Nema 1, 4, 12 IP 65 ZCP21 - main

1NC/1NO Compact Limit Switch Body Nema 1, 4, 12 IP 65

  • Mfr # ZCP21

  • Zoro # G1070772

product price: $29.65
/ea

Key Features

For Use With
XCKP Series Limit Switches
Electrical Connection
Screw Clamp Terminals
IP Rating
IP65
Series
XCKP
AC Contact Rating
1.5 A @ 240 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCP21
Zoro #
G1070772
UPC #
785901290384
Country of Origin
Multiple

Dimensions

Depth
30 mm
Height
65-65 mm
Width
31 mm
Mounting Hole Diameter
0.17 in
Overall Width
1.22 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Overall Height
2.56 in

Details

Item
Compact Limit Switch Body
For Use With
XCKP Series Limit Switches
Electrical Connection
Screw Clamp Terminals
IP Rating
IP65
Series
XCKP
AC Contact Rating
1.5 A @ 240 V
Standards
CCC, CSA, IEC, UL Listed
NEMA Rating
1, 12, 4
Contact Form
1NO/1NC
Operating Temp.
-13 Degrees to 158 Degrees F
Material
Plastic
DC Contact Rating
0.1 A @ 250 V
Body Material
plastic
Electrical Durability
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contacts Type And Composition
1 NC + 1 NO
Short-Circuit Protection
10 A cartridge fuse gG
Number Of Poles
2
Body Type
fixed
Design
compact
Contacts Material
silver plated contacts
Associated Connection Component
ZCPEP20 || ZCPEN12 || ZCPEF12 || ZCPEG11 || ZCPEP16 || ZCPEG13
Minimum Actuation Speed
0.01 m/s
Series Name
Standard compact
Positive Opening
with
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Ambient Air Temperature For Operation
-25-70°C
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Contact Operation
snap action
Device Short Name
ZCP
Ambient Air Temperature For Storage
-40-70°C
Contacts Insulation Form
Zb
Product Compatibility
XCKP
Product Or Component Type
limit switch body
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Associated Head
ZCE06 || ZCE28 || ZCE63 || ZCE01 || ZCE02 || ZCE66 || ZCE14 || ZCE11 || ZCE27 || ZCEH2 || ZCE09 || ZCE67 || ZCE08 || ZCE07 || ZCE24 || ZCEH0 || ZCE21 || ZCE64 || ZCE29 || ZCE62 || ZCE65 || ZCE13 || ZCE10 || ZCE05
Body Configuration
Non Plug-In
Operating Temperature - Minimum
-13 Degrees F
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
NEMA Enclosure Rating
1, 12, 4
Indicating Light
No Indicating Light Included
Mounting Hole Horizontal Center to Center Distance
21 mm
Number of Mounting Holes
2
Compatible with Series
XCKP
Operating Temperature - Maximum
158 Degrees F
Compatible Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Manufacturer Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Mfr. Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use with Mfr Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use With Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Pump Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2

Description

Compact Limit Switch Body, Contact Form 1NO/1NC, For Use With XCKP Series Limit Switches, AC Contact Rating 1.5 A @ 240 V, NEMA Rating 1, 12, 4, Electrical Connection Screw Clamp Terminals, IP Rating IP65, Operating Temp. -13 Degrees to 158 Degrees F, Standards CCC, CSA, IEC, UL Listed
