Item

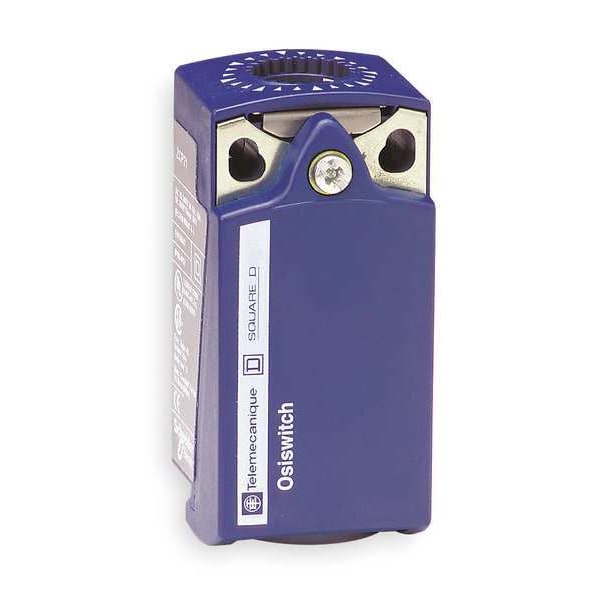

Compact Limit Switch Body
For Use With
XCKP Series Limit Switches
Electrical Connection
Screw Clamp Terminals
AC Contact Rating
1.5 A @ 240 V
Standards
EN/IEC 60947-5-1
Operating Temp.
-13 Degrees to 158 Degrees F
DC Contact Rating
0.1 A @ 250 V
Electrical Durability
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Ambient Air Temperature For Operation
-25-70°C
Series Name
Standard compact
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Short-Circuit Protection
10 A cartridge fuse gG
Associated Connection Component
ZCPEF12 || ZCPEP20 || ZCPEG13 || ZCPEG11 || ZCPEP16 || ZCPEN12
Associated Head
ZCE64 || ZCE62 || ZCE27 || ZCE28 || ZCE65 || ZCE11 || ZCE14 || ZCE10 || ZCE67 || ZCE06 || ZCE24 || ZCE29 || ZCE63 || ZCE01 || ZCE05 || ZCEH0 || ZCE02 || ZCE13 || ZCE08 || ZCE07 || ZCE21 || ZCEH2 || ZCE66
Contact Operation
slow-break, break before make
Contacts Material
silver plated contacts
Ambient Air Temperature For Storage
-40-70°C
Minimum Actuation Speed
6 m/s
Product Or Component Type
limit switch body
Contacts Type And Composition
1 NC + 1 NO
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Product Compatibility
XCKP
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Contacts Insulation Form
Zb
Compatible with Series
XCKP
Mounting Hole Horizontal Center to Center Distance
21 mm
Number of Mounting Holes
2
Body Configuration
Non Plug-In
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 4
Indicating Light
No Indicating Light Included
Operating Temperature - Minimum
-13 Degrees F
