Shop TELEMECANIQUE SENSORS

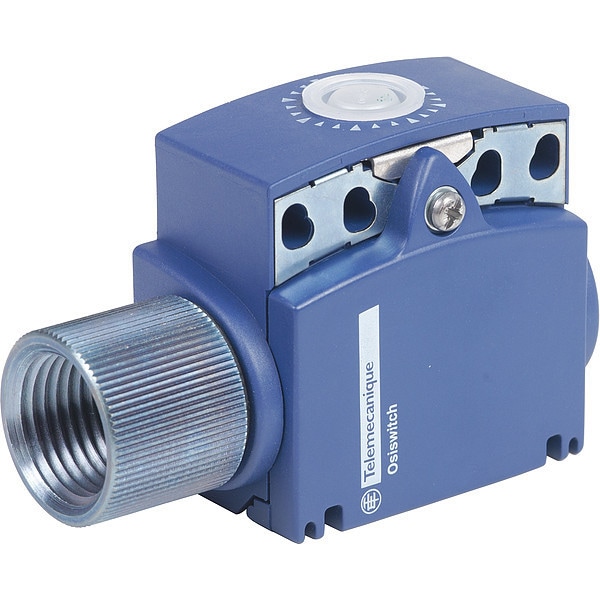

1NC/1NO Compact Limit Switch Body Nema 1, 4, 12 IP 65

  • Mfr # ZCT21N12

  • Zoro # G6727813

product price:  $58.59
/ea

Key Features

For Use With
XCKT Series Limit Switches
Electrical Connection
Screw Terminal
Operating Temp.
-13 Degrees to 158 Degrees F
NEMA Rating
1, 12, 4
Contact Form
1NO/1NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZCT21N12
Zoro #
G6727813
UPC #
785901290414
Country of Origin
France

Dimensions

Height
51-51 mm
Depth
30 mm
Width
58 mm
Mounting Hole Diameter
0.17 in
Overall Height
2.01 in
Overall Depth
1.18 in
Overall Width
2.28 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Body
For Use With
XCKT Series Limit Switches
Electrical Connection
Screw Terminal
Operating Temp.
-13 Degrees to 158 Degrees F
NEMA Rating
1, 12, 4
Contact Form
1NO/1NC
IP Rating
IP65
AC Contact Rating
1.5 A @ 240 V
Standards
UL 508, CSA C22.2 No 14, EN 60947-5-1, IEC 60947-1
Series
XCKT
Material
Plastic
Body Material
plastic
DC Contact Rating
0.1 A @ 250 V
Electrical Durability
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 4
Mounting Hole Horizontal Center to Center Distance
21 mm, 41 mm
Indicating Light
No Indicating Light Included
Compatible with Series
XCKT
Body Configuration
Non Plug-In
Number of Mounting Holes
4
Cable Entry
2 entries tapped for 1/2" NPT adaptor 4-8 mm
Number Of Poles
2
Product Compatibility
XCKT
Series Name
Standard compact
Positive Opening
with
Minimum Actuation Speed
0.01 m/s
Associated Head
ZCE27 || ZCE65 || ZCE28 || ZCE63 || ZCEH2 || ZCE06 || ZCE14 || ZCE21 || ZCE11 || ZCE66 || ZCE64 || ZCE08 || ZCE05 || ZCE02 || ZCE10 || ZCE07 || ZCE24 || ZCE09 || ZCE62 || ZCE29 || ZCE67 || ZCE01 || ZCEH0 || ZCE13
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Contacts Insulation Form
Zb
Design
compact
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Contacts Material
silver plated contacts
Device Short Name
ZCT
Ambient Air Temperature For Storage
-40-70°C
Contacts Type And Composition
1 NC + 1 NO
Contact Operation
snap action
Body Type
fixed
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Product Or Component Type
limit switch body
Ambient Air Temperature For Operation
-25-70°C
Short-Circuit Protection
10 A cartridge fuse gG
Compatible Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Manufacturer Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Mfr. Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use with Mfr Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use With Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Pump Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2

Description

Compact Limit Switch Body, Contact Form 1NO/1NC, For Use With XCKT Series Limit Switches, AC Contact Rating 1.5 A @ 240 V, NEMA Rating 1, 12, 4, Electrical Connection Screw Clamp Terminals, IP Rating IP65, Operating Temp. -13 Degrees to 158 Degrees F, Standards UL 508, CSA C22.2 No 14, EN 60947-5-1, IEC 60947-1
