Item

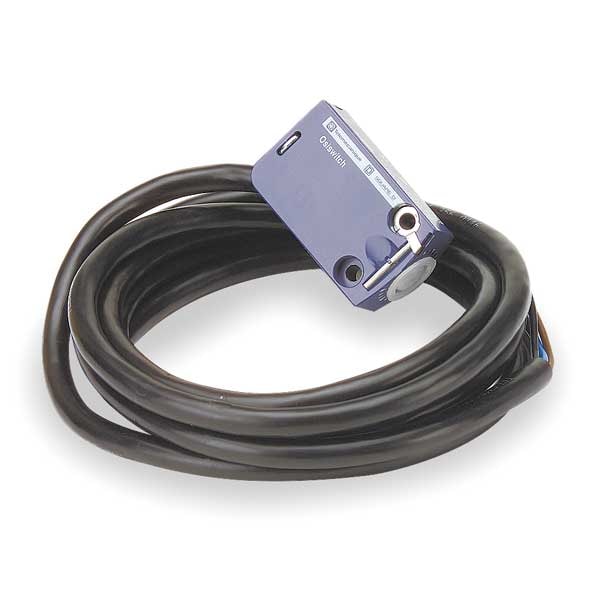

Miniature Limit Switch Body
For Use With
XCMD Series Limit Switches
NEMA Rating
12, 13, 4X, 6P
AC Contact Rating
6 A @ 300 V
Electrical Connection
Snap-In Base with 2m PVR Cable
Operating Temp.
-13 Degrees to 158 Degrees F
Electrical Durability
5000000 cycles, DC-13 120 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Cable Composition
5 x 0.75 mm²
Associated Head
ZCE10 || ZCEF2 || ZCE06 || ZCE07 || ZCE27 || ZCE63 || ZCE14 || ZCEF0 || ZCE11 || ZCE28 || ZCE67 || ZCE21 || ZCE08 || ZCE64 || ZCE65 || ZCE29 || ZCE01 || ZCE62 || ZCE13 || ZCE02 || ZCE24 || ZCEG1 || ZCE66 || ZCE09
Product Compatibility
XCMD
Maximum Resistance Across Terminals
25 mOhm IEC 60255-7 category 3
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60664 || 4 kV IEC 60947-1
Contacts Insulation Form
Zb
[Ui] Rated Insulation Voltage
300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Contact Operation
snap action
Wire Insulation Material
PvR
Short-Circuit Protection
6 A cartridge fuse gG
Contacts Material
silver plated contacts
Series Name
standard format
Minimum Actuation Speed
0.01 m/min
Contacts Type And Composition
1 NC + 1 NO
Product Or Component Type
limit switch body
Ambient Air Temperature For Storage
-40-70°C
Indicating Light
No Indicating Light Included
Compatible with Series
XCMD
Number of Mounting Holes
2
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
12, 13, 4X, 6P
Operating Temperature - Minimum
-13 Degrees F
Mounting Hole Horizontal Center to Center Distance
21 mm
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Body Configuration
Non Plug-In
Compatible Manufacturer Part Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible Manufacturer Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible with Manufacturer Model No.
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible with Mfr. Model No.
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
For Use with Mfr Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
For Use With Mfr. Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible Pump Manufacturer Part Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible Mfr. Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
