  15. 1NC/2NO Safety Interlock Switch

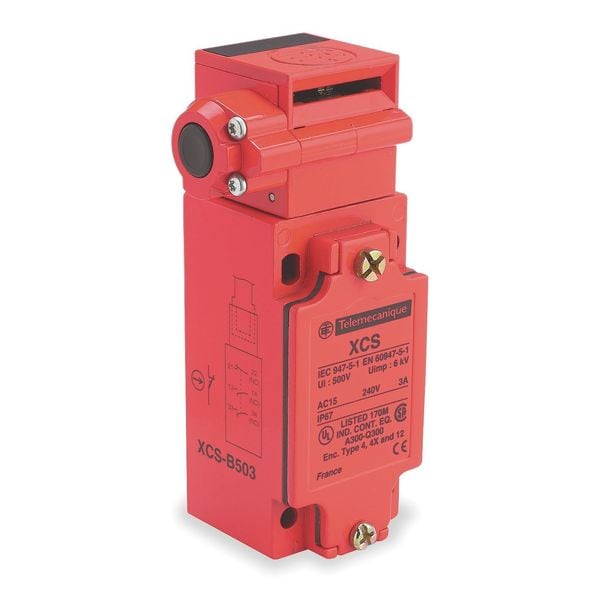

Telemecanique Sensors 1NC/2NO Safety Interlock Switch XCSB503 - main

1NC/2NO Safety Interlock Switch

  • Mfr # XCSB503

  • Zoro # G2799754

product price: $308.99
/ea
Free Shipping & Returns

Key Features

Style
Actuating Key, Field Selectable
Series
XCSB
AC Contact Rating
3 A @ 240 V
Contact Form
2NO/1NC
Connection Type
1/2 in NPT Conduit
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCSB503
Zoro #
G2799754
UPC #
785901277972
Country of Origin
France

Dimensions

Height
114-114 mm
Width
52 mm
Depth
44 mm
Overall Width
2.05 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.73 in
Overall Height
4.49 in

Details

Item
Safety Interlock Switch
Style
Actuating Key, Field Selectable
Series
XCSB
AC Contact Rating
3 A @ 240 V
Contact Form
2NO/1NC
Connection Type
1/2 in NPT Conduit
IP Rating
IP67
Description/Special Features
Push Button Unlocking, With Locking
Body Material
Zamak
Standards
CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508
Features
Push Button Unlocking, With Locking
Head Material
zamak
Material
metal
Electrical Connection
1/2 in NPT Conduit
Head Type
key operated turret head
Shock Resistance
10 gn 11 ms IEC 60068-2-27
Mechanical Durability
600000 cycles
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Actuator Forcible Withdrawal Rtc
1500 N
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-5-1
Minimum Actuator Force For Extraction
20 N
Product Certifications
CSA || UL
Short-Circuit Protection
10 A cartridge fuse gG (gl)
Electrical Shock Protection Class
class I EN/IEC 61140
Cable Entry
1 entry tapped 1/2" NPT
Positive Opening
with NC contact
Component Name
XCSB
Protective Treatment
TC
Maximum Operating Rate
10 cyc/mn for maximum durability
Maximum Actuation Speed
0.5 m/s
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
[Ie] Rated Operational Current
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
[Ithe] Conventional Enclosed Thermal Current
10A
Number Of Poles
3
Local Signalling
without
Ambient Air Temperature For Storage
-40-70°C
Minimum Actuation Speed
0.01 m/s
Contacts Type And Composition
1 NC + 2 NO
Safety Level
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Contact Operation
slow-break, break before make
Design
industrial
Product Or Component Type
safety switch
Ip Degree Of Protection
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Ambient Air Temperature For Operation
-25-70°C
Operating Temperature - Maximum
158 Degrees F
Actuating Key Type
Pivoting, Flat
Operating Temperature - Minimum
-13 Degrees F
Mechanical Operating Durability
600,000
Actuator Material
Metal
Resistance Properties
Shock Resistant, Vibration Resistant
Circuitry Action
Slow Action

Description

Safety Interlock Switch, Actuating Key, Field Selectable, Contact Form 2NO/1NC, Connection Type 1/2 in NPT Conduit, AC Contact Rating 3 A @ 240 V, Series XCSB, IP Rating IP67, Body Material Zamak, Description/Special Features Push Button Unlocking, With Locking, Standards CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508
