Shop TELEMECANIQUE SENSORS

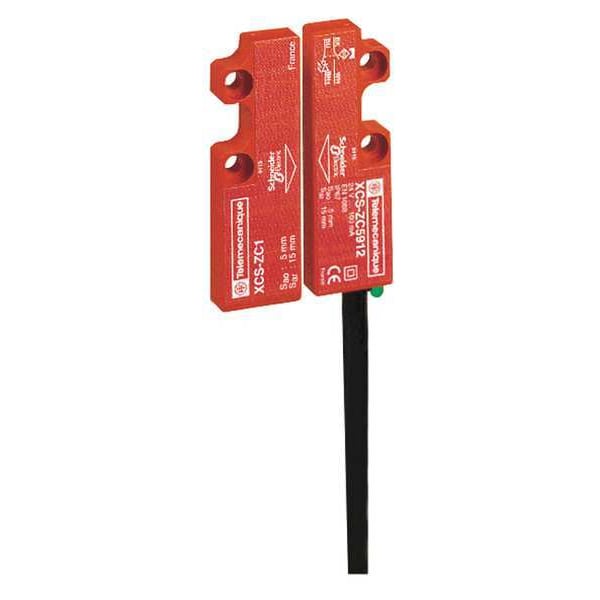

2NC Magnetically Actuated Safety Interlock Switch

  • Mfr # XCSDMC7902

  • Zoro # G3716404

product price:  $137.99
/ea
Free Shipping & Returns

Key Features

Series
XCSDM
DC Contact Rating
0.1 A @ 24 V
Contact Form
2NC
Height
51 mm
Width
16 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XCSDMC7902
Zoro #
G3716404
UPC #
785901537717
Country of Origin
France

Dimensions

Height
51 mm
Width
16 mm
Depth
7 mm
Switch Width
0.63 in
Actuator Depth
0.28 in
Switch Depth
0.28 in
Actuator Width
0.63 in
Cable Length
6.56 ft
Switch Height
2.01 in
Actuator Height
2.01 in
Magnet Actuator Depth
0.28 in
Magnet Actuator Width
0.63 in
Manufacturer Warranty Length
18 mo
Overall Height
2.01 in
Overall Depth
0.28 in
Overall Width
0.63 in
Magnet Actuator Height
2.01 in
Size
51 x 16 x 7 mm

Details

Item
Magnetically Actuated Safety Interlock Switch
Series
XCSDM
DC Contact Rating
0.1 A @ 24 V
Contact Form
2NC
IP Rating
IP66, IP67
Operating Temp. Range
-13 Degrees to 185 Degrees F
Off Sensing Distance
0.59 in
Body Material
Plastic
On Sensing Distance
0.2 in
Termination Type
Pre-Cabled
Includes
Actuator
Standards
CSA, RoHS, UL Listed
Material
plastic
Electrical Connection
pre-cabled
Shock Resistance
30 gn 11 ms IEC 60068-2-27
Electrical Durability
1200000 cycles
Vibration Resistance
10 gn 10-150 Hz)IEC 60068-2-6
Body Style
Rectangular
Switch Type
Coded Switch
Operating Temperature - Maximum
185 Degrees F
Off Sensing Distance - Maximum
0.59 in
On Sensing Distance - Maximum
0.2 in
Operating Temperature - Minimum
-13 Degrees F
Ambient Air Temperature For Operation
-25-85°C
Product Or Component Type
coded magnetic switch
Short-Circuit Protection
500 mA external cartridge fuse gG (gl)
Cable Material
PVC
Design
rectangular, compact
Approach Directions
3 directions
[Ui] Rated Insulation Voltage
100 V DC
Enclosure Material
thermoplastic PBT
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-5-1
Contacts Material
rhodium
Component Name
XCSDMC
Electrical Shock Protection Class
class II EN/IEC 61140
[Ue] Rated Operational Voltage
24 V DC
Contacts Type And Composition
2 NC
Number Of Poles
2
Safety Level
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
[Sar] Assured Tripping Distance
15 mm
Switching Capacity In Ma
0.1...100 mA
Protective Treatment
TH
Ip Degree Of Protection
IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
Product Certifications
CSA || UL
Maximum Switching Voltage
100 V DC
Breaking Capacity
10 VA
Ambient Air Temperature For Storage
-40-85°C
Maximum [Ie] Rated Operational Current
100 mA
Contact Operation
staggered
Cable Composition
4 x 0.25 mm²
Resistance Across Terminals
10 Ohm
Maximum Sensitivity To Magnetic Fields
0.3 mT
Insulation Resistance
1000 MOhm
Switching Frequency
150 Hz
[Sa] Assured Operating Distance
5 mm

Description

Magnetically Actuated Safety Interlock Switch, Series XCSDM, Switch Width 0.63 in, Switch Height 2.01 in, Switch Depth 0.28 in, Contact Form 2NC, DC Contact Rating 0.1 A @ 24 V, Operating Temp. Range -13 Degrees to 185 Degrees F, Termination Type Pre-Cabled, Cable Length 6.56 ft, IP Rating IP66, IP67, Actuator Width 0.63 in, Actuator Height 2.01 in, Actuator Depth 0.28 in, On Sensing Distance 0.2 in, Off Sensing Distance 0.59 in, Body Material Plastic, Standards CSA, RoHS, UL Listed

Restrictions

Hazardous material
