  15. 2NC/1NO Safety Interlock Switch Nema 4, 4X, 12 IP 67

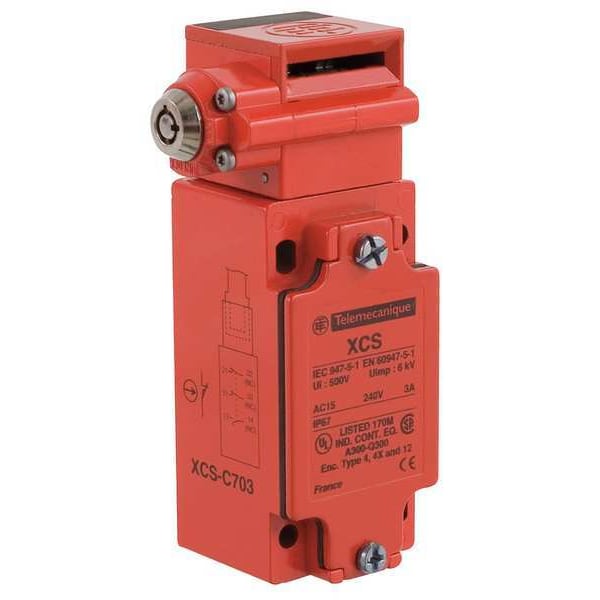

Telemecanique Sensors 2NC/1NO Safety Interlock Switch Nema 4, 4X, 12 IP 67 XCSC703 - main

2NC/1NO Safety Interlock Switch Nema 4, 4X, 12 IP 67

  • Mfr # XCSC703

  • Zoro # G3718136

product price: $320.99
/ea
Free Shipping & Returns

Key Features

Style
Actuating Key, Tubular Key Unlock
Series
XCSC
Actuator Length
Key Dependent
AC Contact Rating
10 A @ 300 V
DC Contact Rating
6 A @ 300 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCSC703
Zoro #
G3718136
UPC #
785901719090
Country of Origin
France

Dimensions

Actuator Length
Key Dependent
Height
1.73 in
Width
2.05 in
Depth
4.47 in
Conduit Size
1/2 in NPT
Overall Width
2.05 in
Overall Height
4.49 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.73 in

Details

Item
Safety Interlock Switch
Style
Actuating Key, Tubular Key Unlock
Series
XCSC
AC Contact Rating
10 A @ 300 V
DC Contact Rating
6 A @ 300 V
Contact Form
1NO/2NC
Connection Type
1/2 in NPT Conduit
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight
Body Material
Zamak
Head Material
Zamak
NEMA Rating
12, 4, 4X
Operating Force
4.5 lb
Standards
CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508
Material
metal
Electrical Connection
1/2 in NPT Conduit
Shock Resistance
10 gn 11 ms IEC 60068-2-27
Head Type
key operated turret head
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Mechanical Durability
600000 cycles
Operating Temperature - Minimum
-13 Degrees F
Actuator Material
Metal
Mechanical Operating Durability
600,000
NEMA Enclosure Rating
12, 4, 4X
Circuitry Action
Slow Action
Resistance Properties
Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant, Watertight
Actuating Key Type
Pivoting, Flat
Operating Temperature - Maximum
158 Degrees F
Contact Operation
slow-break, break before make
Ambient Air Temperature For Storage
-40-70°C
Contacts Type And Composition
2 NC + 1 NO
Product Or Component Type
safety switch
Positive Opening
with NC contact
[Ie] Rated Operational Current
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Product Certifications
UL || CSA
Safety Level
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Minimum Actuation Speed
0.01 m/s
Actuator Forcible Withdrawal Rtc
1500 N
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-5-1
[Ithe] Conventional Enclosed Thermal Current
10A
Ambient Air Temperature For Operation
-25-70°C
Minimum Actuator Force For Extraction
20 N
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
Cable Entry
1 entry tapped 1/2" NPT
Maximum Operating Rate
10 cyc/mn for maximum durability
Ip Degree Of Protection
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Electrical Shock Protection Class
class I EN/IEC 61140
Number Of Poles
3
Protective Treatment
TC
Short-Circuit Protection
10 A cartridge fuse gG (gl)
Component Name
XCSC
Local Signalling
without
Design
industrial
Maximum Actuation Speed
0.5 m/s

Description

Safety Interlock Switch, Actuating Key, Tubular Key Unlock, Contact Form 1NO/2NC, Actuator Length Key Dependent, Connection Type 1/2 in NPT Conduit, AC Contact Rating 10 A @ 300 V, Series XCSC, DC Contact Rating 6 A @ 300 V, Height 1.73 in, Width 2.05 in, Depth 4.47 in, NEMA Rating 12, 4, 4X, IP Rating IP67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Zamak, Head Material Zamak
