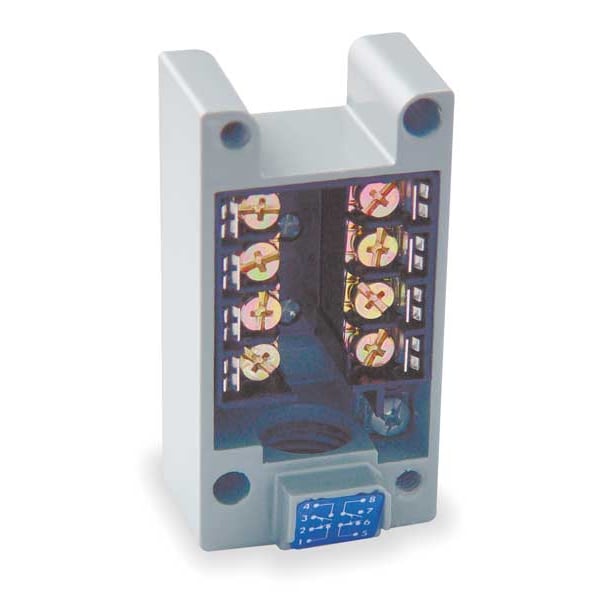

Telemecanique Sensors 2NC/2NO Limit Switch Base 9007CT62 - main

2NC/2NO Limit Switch Base

  • Mfr # 9007CT62

  • Zoro # G2693451

product price: $24.79
/ea

Key Features

For Use With
Mfr. No. DPDT Series
Contact Form
2NO/2NC
Body Material
Zinc Die Cast
Conduit Size
1/2"-14 NPT
Material of Construction
Zinc Die Cast
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007CT62
Zoro #
G2693451
UPC #
785901500896
Country of Origin
Mexico

Dimensions

Conduit Size
1/2"-14 NPT
Height
3.14-3.14 in
Width
1.55 in
Depth
0.9 in
Mounting Hole Diameter
0.2 in
Manufacturer Warranty Length
18 mo
Overall Depth
0.9 in
Conduit Connection Size
1/2"-14
Overall Length
3.14 in
Overall Width
1.55 in

Details

Item
Limit Switch
For Use With
Mfr. No. DPDT Series
Contact Form
2NO/2NC
Body Material
Zinc Die Cast
Material of Construction
Zinc Die Cast
Material
Zinc
Electrical Connection
Screw-Clamp Terminal
Standards
ANSI B1.20.1
Product Type
Limit Switch Base
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Mounting Style
Diagonal Side
Number of Mounting Holes
2
Conduit Connection Type
NPT
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
185 Degrees F
Mounting Hole Horizontal Center to Center Distance
30 mm
Compatible with Series
9007C
Body Configuration
Plug-In
Compatible with Manufacturer Model Number
9007C062, 9007C066, 9007C068
NEMA Enclosure Rating
12, 13, 2, 4, 6, 6P
Device Short Name
9007C
Nema Degree Of Protection
NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Series Name
heavy duty
Protective Treatment
epoxy powder coat
Body Type
standard plug-in
Environmental Characteristic
standard environment
Ambient Air Temperature For Operation
-20-185°F standard environment
Product Or Component Type
limit switch base
Ambient Air Temperature For Storage
-20-185°F
Electrical Shock Protection Class
class 0 IEC 61140
Cable Entry
1 entry for 1/2" - 14 NPT ANSI B1.20.1
Ip Degree Of Protection
IP67 conforming to IEC 60529
Associated Connection Component
9007CO62 || 9007CO66 || 9007CO68
Associated Head
9007C
Product Compatibility
9007C
Compatible Manufacturer Part Number
9007C062, 9007C066, 9007C068
Compatible Manufacturer Model Number
9007C062, 9007C066, 9007C068
Compatible with Manufacturer Model No.
9007C062, 9007C066, 9007C068
Compatible with Mfr. Model No.
9007C062, 9007C066, 9007C068
For Use with Mfr Model Number
9007C062, 9007C066, 9007C068
For Use With Mfr. Model Number
9007C062, 9007C066, 9007C068
Compatible Pump Manufacturer Part Number
9007C062, 9007C066, 9007C068
Compatible Mfr. Model Number
9007C062, 9007C066, 9007C068

Description

Limit Switch, Contact Form 2NO/2NC, Material of Construction Zinc Die Cast, Conduit Size 1/2 In.-14 NPT, For Use With Mfr. No. DPDT Series
