  13. 600V-AC 24V-DC CONTROL RELAY

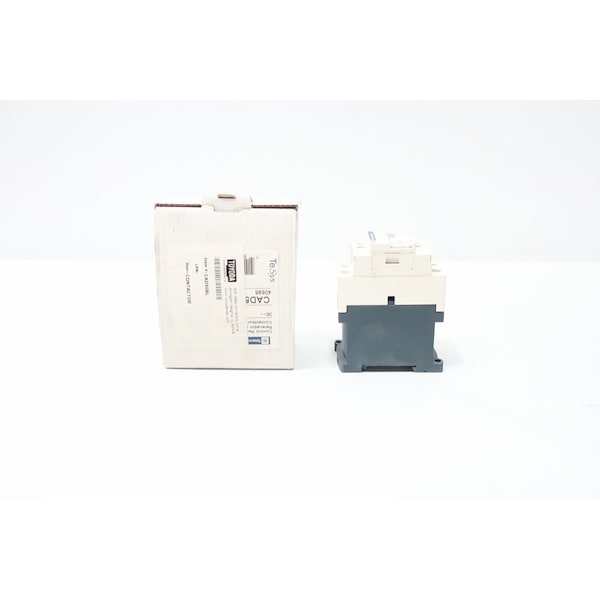

Telemecanique Sensors 600V-AC 24V-DC CONTROL RELAY CAD50BL - main

600V-AC 24V-DC CONTROL RELAY

  • Mfr # CAD50BL

  • Zoro # G611333532

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
control relay
Coil Volts
690V AC
Contact Form - Relay
5 N.O.
Mounting - Relay
Rail, Plate
Standards
UL 60947-5-1 || CSA C22.2 No 60947-5-1 , UL,CSA,CE
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CAD50BL
Zoro #
G611333532
UPC #
-
Country of Origin
Unknown

Dimensions

Body Height - Relay
77 mm
Body Width - Relay
45 mm
Body Depth - Relay
93 mm

Details

Item - Relay
control relay
Coil Volts
690V AC
Contact Form - Relay
5 N.O.
Mounting - Relay
Rail, Plate
Standards
UL 60947-5-1 || CSA C22.2 No 60947-5-1 , UL,CSA,CE
Features
Mercury Free
Power Consumption - Relay
2.4 W
Maximum Operating Rate
180 cycles/min
Minimum Switching Current
5 mA
Minimum Switching Voltage
17V
Control Circuit Type
DC Low Consumption
Associated Fuse Rating
10 A
Insulation Resistance
Greater than 10 MOhm
Operating Time
65 to 88 ms Coil Energisation and NO Closing; 14 to 25 ms Coil De-energisation and NO Opening
Rated Insulation Voltage
600V
Rated Impulse Withstand Voltage
6 kV
Contactor Application
Control Circuit
Rated Short-Time Withstand Current
100 A (1 s), 120 A (500 ms), 140 A (100 ms)
Rated Making Capacity
140 A (AC), 250 A (DC)
Control Circuit Voltage Limits
0.1 to 0.25 Uc (-40-70°C): drop-out DC; 0.7 to 1.25 Uc (-40-60°C): operational DC; 1 to 1.25 Uc (60-70°C): operational DC
Tightening Torque
1.2 Nm
Conventional Free Air Thermal Current
10 A (at 60°C)
Terminal Type
Screw Clamp
Storage Air Temperature
-60 to 80°C
Non-Overlap Time
1.5 ms
Control Circuit Voltage
24V DC
Operating Altitude
0 to 3000 m
Time Constant
40 ms
IP Rating
IP2X
Operational Air Temperature
60 to 70°C
