  11. Alternator Lqd Lvl Swch, Vrtcl Open Tank

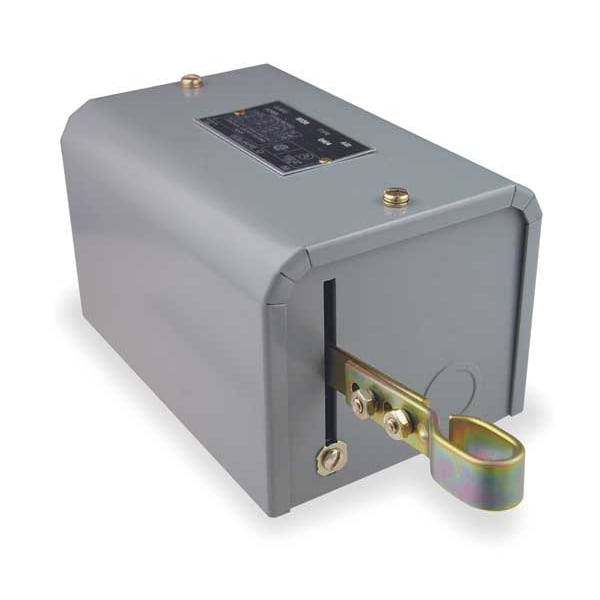

Telemecanique Sensors Alternator Lqd Lvl Swch, Vrtcl Open Tank 9038AG1N5 - main

Alternator Lqd Lvl Swch, Vrtcl Open Tank

  • Mfr # 9038AG1N5

  • Zoro # G1344366

product price: $373.72
/ea
Free Shipping & Returns

Key Features

Switch Function
Close On Rise
Mounting
Open Tank
Float Travel
1 1/4 in
NEMA Rating
1
VA Rating
460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9038AG1N5
Zoro #
G1344366
UPC #
785901009498
Country of Origin
Mexico

Dimensions

Overall Length
10.32 in
Height
4.5 in
Float Length
7 in
Width
4.69 in
Conduit Size
4 1/2 in, 4 3/4 in
Float Dia.
7 in
Manufacturer Warranty Length
18 mo
Overall Height
4.5 in
Float Diameter
7 in
Overall Width
4.69 in

Details

Item
Alternator Open Liquid Level Switch
Switch Function
Close On Rise
Mounting
Open Tank
Float Travel
1 1/4 in
NEMA Rating
1
VA Rating
460V AC
Operating Temp. Range
-22 Degrees to 220 Degrees F
Electrical Connections
Screw Clamp
Float Position
Below
HP @ 1 Phase - 120V
2 hp
Contact Form
DPST-4NC
Body Material
Steel
Float Material
Stainless Steel
Includes
High Water Alarm Circuit - Does Not Include Float
Max. Current
600 A
Standards
CSA File No.LR25490, UL 508, UL E12158
HP @ 3 Phase - 240V
5 hp
Amps
10 A
Max. Voltage
600
HP @ 1 Phase - 240V
3 hp
Enclosure Material
painted cold-rolled steel
Features
(4) Knock-Outs Conduit Entries for 1/2 in or 3/4 in
Float Rod Angle
Vertical
Product Type
Alternator Open Liquid Level Switch
Horsepower @ Three Phase - 240V AC
5 hp
Operating Temperature - Minimum
-22 Degrees F
Minimum Media Specific Gravity
0.85
Horsepower @ Single Phase - 240V AC
3 hp
Series
9038A
Electrical Connection
Screw Clamp
Mounting Style
Open Tank Vertical
Operating Temperature - Maximum
220 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
Voltage Rating - Maximum
575 V AC
Current Rating
600 A
NEMA Enclosure Rating
1
Local Signalling
without
Device Mounting
pedestal
Product Certifications
UL listed file E12158 || CSA file LR25490
Device Short Name
9038A
Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Cable Entry Number
4 knock-outs for 1/2" or 3/4"conduit UL 508
Factory Modification
addition of a third, high-water alarm circuit (SPST-NO-DB)
Float Movement
variable adjustable
Electrical Circuit Type
power circuit with control duty alarm
Ambient Air Temperature For Operation
-22-220°F
Contact Operation
contacts close on liquid rise
Device Application
open tank
Nema Degree Of Protection
NEMA 1 UL 50
Electrical Durability
100 cycles 60 cyc/mn
Force Up To Trip
18 ozf at minimum adjustment || 16 ozf at maximum adjustment
Product Or Component Type
mechanical alternator
Maximum Operating Rate
60 cyc/mn
Short-Circuit Protection
20 A cartridge fuse gG
Terminal Block Type
8 terminals
Product Specific Application
mechanically alternating the operation of two pumps or motors
Kit Composition
rod and float are to be choosen in accessories || float switch
Mechanical Durability
300 cycles
Force Down To Trip
20 ozf at minimum adjustment || 17 ozf at maximum adjustment
Controlled Fluid
fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher
Product Destination
for open tank
Terminals Description Iso N°1
line-load-load-line
Ambient Air Temperature For Storage
-22-220°F
[Ui] Rated Insulation Voltage
575 V UL 508
Contacts Type And Composition
4 NC, snap action, DPST-DB, Form YY
Operating Position
vertical position only

Description

Alternator Open Liquid Level Switch, 10 A Amps, Contact Form DPST-4NC, VA Rating 460V AC, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 10.32 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 4.5 in, Width 4.69 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Steel
