  15. Cable Pull Sw 240Vac 10A Xy2(Metric

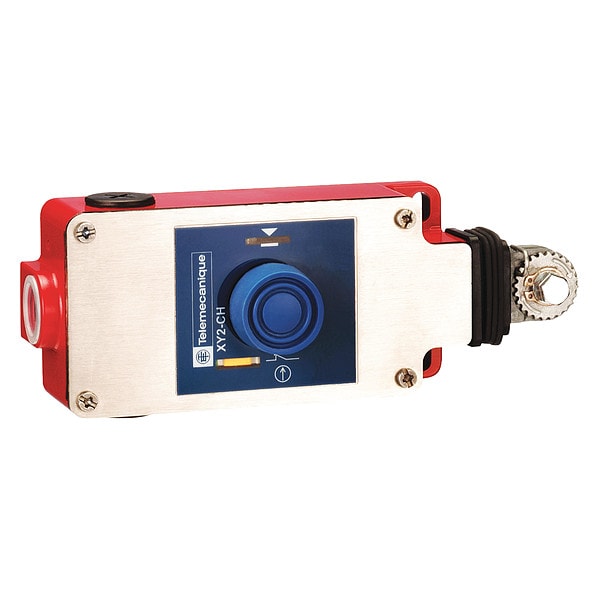

Telemecanique Sensors Cable Pull Sw 240Vac 10A Xy2(Metric XY2CH13270 - main

Cable Pull Sw 240Vac 10A Xy2(Metric

  • Mfr # XY2CH13270

  • Zoro # G0557938

product price: $407.99
/ea
Free Shipping & Returns

Key Features

Reset
by booted push-button
Standards
EN/ISO 13850 || machinery directive 2006/42/EC || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || work equipment directive 2009/104/EC || EN/IEC 60204-1
Body Material
zamak
Series
XY2CE
Safety Level
can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XY2CH13270
Zoro #
G0557938
UPC #
785901655169
Country of Origin
Morocco

Dimensions

Trigger Cable Maximum Length
30 m

Details

Item
Cable Pull Switch
Reset
by booted push-button
Standards
EN/ISO 13850 || machinery directive 2006/42/EC || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || work equipment directive 2009/104/EC || EN/IEC 60204-1
Body Material
zamak
Series
XY2CE
Safety Level
can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Mechanical Durability
800000 cycles
Local Signalling
without pilot light
Cover Material
stainless steel
Product Or Component Type
latching emergency stop rope pull switch
Tightening Torque
0.8-1.2 N.m
Distance Between Cable Supports
5-5 m
Marking
CE
Contacts Type And Composition
2 NC
Terminals Description Iso N°1
(21-22)NC || (11-22)NC
Compatibility Code
XY2CH
Device Short Name
XY2CH
Maximum Resistance Across Terminals
25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Ip Degree Of Protection
IP65 IEC 60529
Product Certifications
UL category NISD emergency stop devices || CCC
Overvoltage Category
class I EN/IEC 61140 || class I NF C 20-030
[Ui] Rated Insulation Voltage
500 V 3)EN/IEC 60947-1 || 300 VUL 508
Protective Treatment
TC
Connections - Terminals
screw clamp terminal, 1 x 0.5 to 2 x 1.5 mm²
Housing Colour
red RAL 3000
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60269
[Ithe] Conventional Enclosed Thermal Current
10 A
Trigger Cable Anchor Point
RH or LH side
Cable Entry Number
3 tapped entry Pg 13.5 cable gland
Contact Operation
slow-break
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Positive Opening
with EN/IEC 60947-5-1
Number Of Cables
1
Ambient Air Temperature For Operation
-25-70°C
Vibration Resistance
10 gn 10-150 Hz)EN/IEC 60068-2-6

Description

Cable Pull Switch
