  15. Cable Pull Switch, 10A, Universal, 1NO+1NC

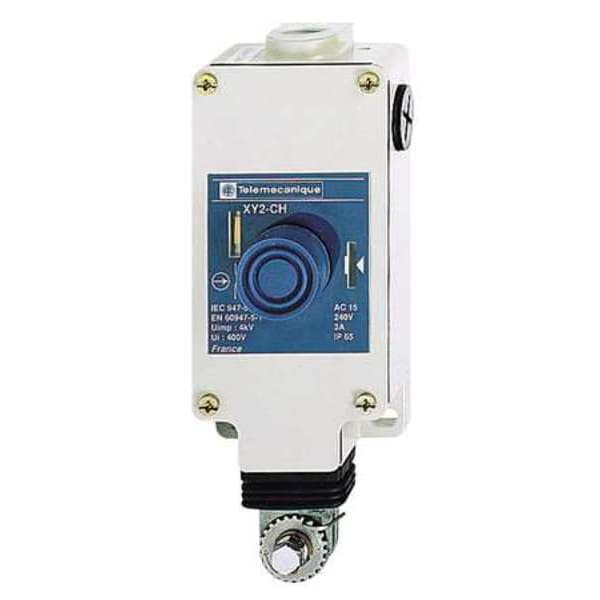

Telemecanique Sensors Cable Pull Switch, 10A, Universal, 1NO+1NC XY2CH13150H7 - main

Cable Pull Switch, 10A, Universal, 1NO+1NC

  • Mfr # XY2CH13150H7

  • Zoro # G4091437

product price: $344.99
/ea
Free Shipping & Returns

Key Features

Switch Function
Maintained
Mounting Style
Single End
AC Contact Rating
3 A @ 240 V
Contact Form
1NO/1NC
Reset
Push Button
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XY2CH13150H7
Zoro #
G4091437
UPC #
785901722120
Country of Origin
Morocco

Dimensions

Width
2.68 in
Depth
1.57 in
Length
7.76 in
Length (Straight Wireway)
7.76 in
Overall Depth
1.57 in
Manufacturer Warranty Length
18 mo
Overall Width
2.68 in
Trigger Cable Maximum Length
30 m

Details

Item
Emergency Cable Pull Switch
Switch Function
Maintained
Mounting Style
Single End
AC Contact Rating
3 A @ 240 V
Contact Form
1NO/1NC
Reset
Push Button
Max. Cable Span
50 ft
Operating Force
4.5 lb
NEMA Rating
1, 12, 4
Indicator
No Indicator
Switching Ability
Single Cable
DC Contact Rating
0.27 A @ 250 V
Standards
CCC, CSA, CSA C22.2 No. 14 Machinery Directive 2006/42/EC, EN/IEC 60204-1, EN/IEC 60947-5, EN/IEC 60947-5-5, EN/ISO 13850, UL 508, Work Equipment Directive 2009/104/EC
Wiring Entry
1/2 in NPT
IP Rating
IP65
Thermal Amperage
10 A
Cable Connection Location
Left or Right
Case Material
Zamak
For Use With
Preventa XPS Safety Relays
Body Material
zamak
Series
XY2CE
Operating Temperature - Minimum
-13 Degrees F
Cable Span - Maximum
98 ft
Operating Temperature - Maximum
158 Degrees F
Action
Maintained
Thermal Current
10 A
Pull Force
4.5 lb
NEMA Enclosure Rating
1, 12, 4
Overvoltage Category
class I EN/IEC 61140 || class I NF C 20-030
[Ithe] Conventional Enclosed Thermal Current
10 A
Contact Operation
slow-break
Protective Treatment
TC
Cover Material
stainless steel
Local Signalling
without pilot light
Tightening Torque
0.8-1.2 N.m
[Ui] Rated Insulation Voltage
500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Compatibility Code
XY2CH
Distance Between Cable Supports
5-5 m
Positive Opening
with EN/IEC 60947-5-1
Ip Degree Of Protection
IP65 IEC 60529
Ambient Air Temperature For Storage
-40-70°C
Maximum Resistance Across Terminals
25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60269
Contacts Type And Composition
1 NC + 1 NO
Vibration Resistance
10 gn 10-150 Hz)EN/IEC 60068-2-6
Mechanical Durability
800000 cycles
Safety Level
can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Marking
CE
Housing Colour
red RAL 3000
Product Or Component Type
latching emergency stop rope pull switch
Connections - Terminals
screw clamp terminal, 1 x 0.5 to 2 x 1.5 mm²
Ambient Air Temperature For Operation
-25-70°C
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Cable Entry Number
3 tapped entry 1/2" NPT conduit entry
Device Short Name
XY2CH
Product Certifications
UL category NISD emergency stop devices || CSA || CCC
Trigger Cable Anchor Point
RH or LH side
Number Of Cables
1

Description

Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Single End, AC Contact Rating 3 A @ 240 V, Contact Form 1NO/1NC, Push Button Reset, Max. Cable Span 50 ft, Operating Force 4.5 lb, NEMA Rating 1, 12, 4, Indicator No Indicator, Cable Connection Location Left or Right, Thermal Amperage 10 A, Length 7.76 in, Width 2.68 in, Depth 1.57 in, Switching Ability Single Cable, DC Contact Rating 0.27 A @ 250 V, Min. Current Not Applicable, Case Material Zamak, Wiring Entry 1/2 in NPT
