Shop TELEMECANIQUE SENSORS

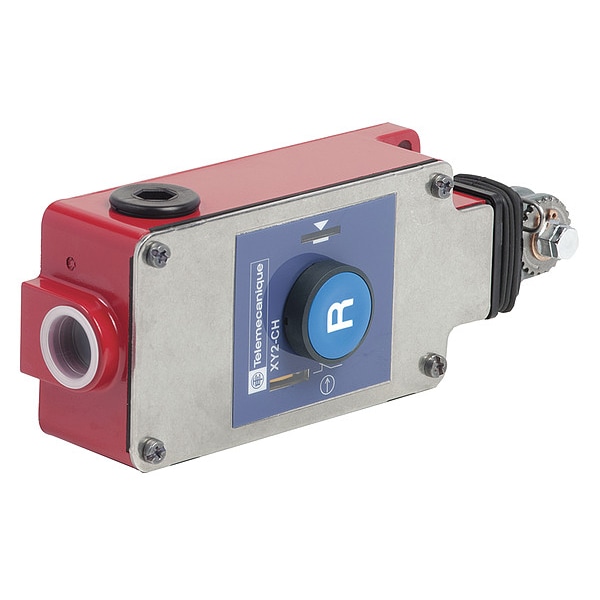

Cable Pull Switch 240Vac 10A Xy2C

  • Mfr # XY2CH13170H7

  • Zoro # G0557971

product price:
$
387.99
/ea
Free Shipping & Returns

Key Features

Reset
by flush push-button
Standards
EN/IEC 60947-5-1 || EN/ISO 13850 || EN/IEC 60947-5-5 || machinery directive 2006/42/EC || work equipment directive 2009/104/EC || EN/IEC 60204-1
Series
XY2C
Body Material
zamak
Mechanical Durability
800000 cycles
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XY2CH13170H7
Zoro #
G0557971
UPC #
785901722182
Country of Origin
Morocco
Item
Cable Pull Switch
Reset
by flush push-button
Standards
EN/IEC 60947-5-1 || EN/ISO 13850 || EN/IEC 60947-5-5 || machinery directive 2006/42/EC || work equipment directive 2009/104/EC || EN/IEC 60204-1
Series
XY2C
Body Material
zamak
Mechanical Durability
800000 cycles
Cover Material
stainless steel
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Cable Entry Number
3 tapped entry 1/2" NPT conduit entry
Ambient Air Temperature For Operation
-25-70°C
Positive Opening
with EN/IEC 60947-5-1
Contacts Type And Composition
2 NC
Local Signalling
without pilot light
Connections - Terminals
screw clamp terminal, 1 x 0.5 to 2 x 1.5 mm²
Product Or Component Type
latching emergency stop rope pull switch
Safety Level
can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Housing Colour
red RAL 3000
Contact Operation
slow-break
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Compatibility Code
XY2CH
Tightening Torque
0.8-1.2 N.m
Trigger Cable Anchor Point
RH or LH side
Marking
CE
Device Short Name
XY2CH
Product Certifications
UL category NISD emergency stop devices || CCC
Protective Treatment
TC
Terminals Description Iso N°1
(11-22)NC || (21-22)NC
[Ui] Rated Insulation Voltage
500 V 3)EN/IEC 60947-1 || 300 VUL 508
Ip Degree Of Protection
IP65 IEC 60529
Overvoltage Category
class I EN/IEC 61140 || class I NF C 20-030
Distance Between Cable Supports
5-5 m
Number Of Cables
1
[Ithe] Conventional Enclosed Thermal Current
10 A
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60269
Ambient Air Temperature For Storage
-40-70°C
Maximum Resistance Across Terminals
25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Vibration Resistance
10 gn 10-150 Hz)EN/IEC 60068-2-6

Description

Cable Pull Switch
