  11. Capacitive sensor-XT1-cylindrical M3
This item is Discontinued.

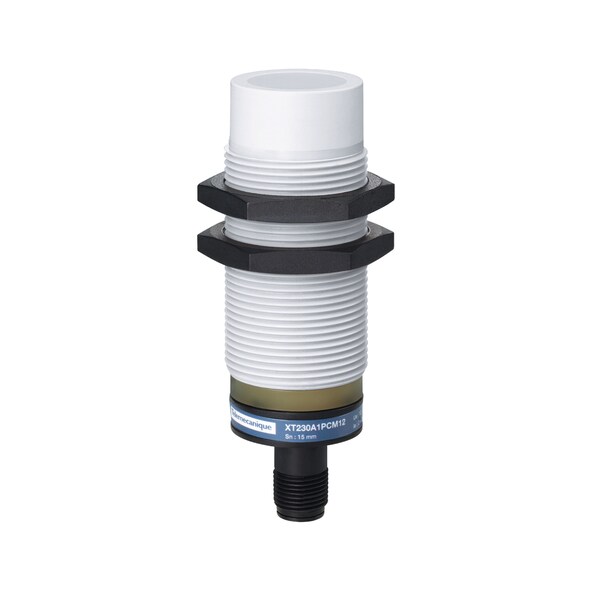

Telemecanique Sensors Capacitive sensor-XT1-cylindrical M3 XT230A1PCM12

Capacitive sensor-XT1-cylindrical M3 (Discontinued)

  • Mfr # XT230A1PCM12
  • Zoro # G4056209
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XT230A1PCM12
Zoro #
G4056209
UPC #
-
Country of Origin
China

Dimensions

Length
74.5 mm

Details

Item
Capacitive sensor - XT1 - cylindrical M3
Proximity Sensor Style
Cylindrical M30
Proximity Sensing Method
Capacitive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
4-Wire DC PNP
Output Mode
1 NC + 1 NO
Max. Detecting Distance
15 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
Plastic
Proximity Sensor Operating Frequency
Less than Or Equal to 150 Hz
Max. Current Load
25 mA; Switching Current: 400 mA
IP Rating
IP67
Operating Temp. Range
-10 to 60 Degrees C
Standards
EN/IEC 60947-5-2; cULus; CE Marked
Description/Special Features
Frontal Detection Face; Short-Circuit Protection; Sensitivity By Potentiometer; Output State Indication 1 LED Yellow
Application
detection of insulated or conductive materials
Series
XT2
Differential Travel
< 1...20 % Sr
Shock Resistance
30 gn 11 ms IEC 60068-2-27
Maximum Delay Response
15 ms
Supply Voltage Limits
10-30 V DC
Vibration Resistance
10 gn 1 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2.5 V closed)
Maximum Delay Recovery
15 ms
Maximum Delay First Up
100 ms
Body Type
fixed

Description

Capacitive sensor - XT1 - cylindrical M3
