Shop TELEMECANIQUE SENSORS

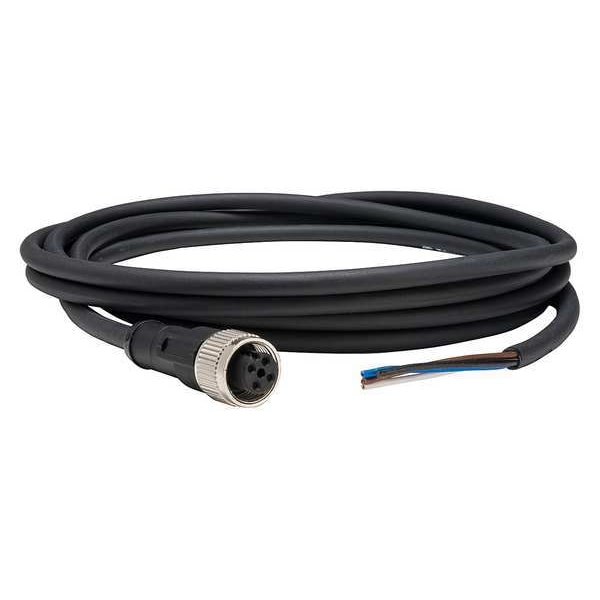

Cordset, 16.4 ft., Black, 250VAC/300VDC

  • Mfr # XZCP1141L5

  • Zoro # G6655747

product price:
$
22.69
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
4
Wire Size
18 AWG
Cable Length
5 m
Cable Jacket Material
PUR
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XZCP1141L5
Zoro #
G6655747
UPC #
785901171652
Country of Origin
Czechia

Dimensions

Wire Size
18 AWG
Cable Length
5 m
Cable Outer Diameter
5.2 mm

Details

Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
4
Cable Jacket Material
PUR
Cable Jacket Color
Black
IP Rating
IP65, IP67, IP69K
Max. Amps
4 A
Maximum Operating Temperature
176 Degrees F
Max. Voltage
250 V AC, 300 V DC
End 1 Keyway
Single
End 1 Connection Type
M12
End 1 Gender and Plug End
Female Straight
Features
Good Resistance to Severe Mechanical Stress, Friction, Abrasion, Torsion, Hot and Cold Oils, Greases and Lubricants, Halogen-Free
End 1 Thread
M12
Standards
CSA Certified, IEC, UL Listed
End 2 Connection Type
Bare Wire
Temp. Range
-40 Degrees to 80 Degrees C
Number of Conductors
4
End 2 Gender and Plug End
Bare Wire
End 1 Number of Keyways
1
Number of Wires
4
End 1 Mounting Orientation
Straight
Minimum Operating Temperature
-13 Degrees F
End 1 Gender
Female
Ambient Air Temperature For Storage
-40-80°C
Ambient Air Temperature For Operation
-40-80°C static || -5-80°C flexing
Series Name
general purpose
Collar Material
metal
Line Rated Current
4A
Status Led
without
Contact Resistance
5000µOhm
[Ue] Rated Operational Voltage
250 V AC || 300 V DC
Cable Composition
4 x 0.34 mm²
Electrical Connection
straight female connector M12, 4 pins
Cable Connector Fixing
interlocked || screw-on
Accessory / Separate Part Type
pre-wired connectors
Product Certifications
cULus
Accessory / Separate Part Category
cabling accessory
Minimum Insulating Resistance
1 GΩ

Description

Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 3 A, Wire Size 22 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
