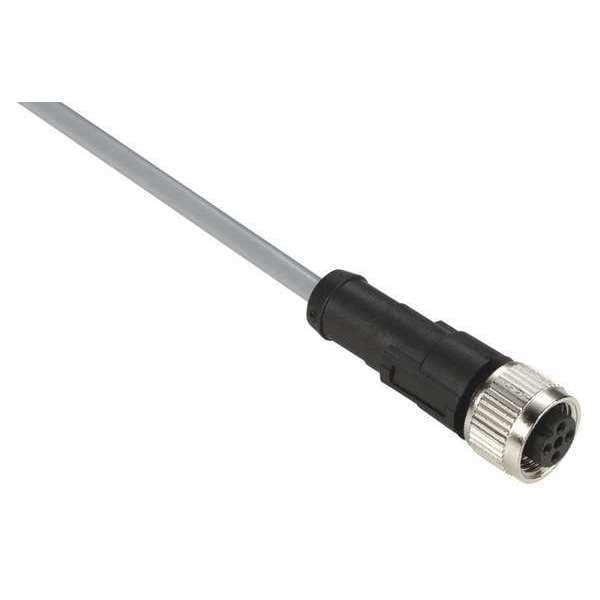

Telemecanique Sensors Cordset, 16.4 ft., Gray, 250VAC/300VDC XZCPV1164L5 - main

Cordset, 16.4 ft., Gray, 250VAC/300VDC

  • Mfr # XZCPV1164L5

  • Zoro # G7182156

product price:  $21.99
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
5
Wire Size
18 AWG
Cable Length
5 m
Cable Jacket Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XZCPV1164L5
Zoro #
G7182156
UPC #
785901474364
Country of Origin
Poland

Dimensions

Wire Size
18 AWG
Cable Length
5 m
Cable Outer Diameter
5.2 mm

Details

Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
5
Cable Jacket Material
PVC
Cable Jacket Color
Gray
IP Rating
IP65, IP67
Max. Amps
3 A
Maximum Operating Temperature
176 Degrees F
End 1 Gender and Plug End
Female Straight
End 1 Keyway
Single
Features
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping
Standards
CSA Certified, IEC, UL Listed
Max. Voltage
250 V AC, 300 V DC
End 1 Connection Type
M12
End 1 Thread
M12
Temp. Range
-25 Degrees to 80 Degrees C
Number of Conductors
5
End 2 Gender and Plug End
Bare Wire
End 2 Connection Type
Bare Wire
End 1 Number of Keyways
1
Number of Wires
5
End 1 Mounting Orientation
Straight
End 1 Gender
Female
Minimum Operating Temperature
-13 Degrees F
Minimum Insulating Resistance
1 GΩ
Ambient Air Temperature For Storage
-25-80°C
Status Led
without
[Ue] Rated Operational Voltage
60 V AC || 75 V DC
Electrical Connection
straight female connector M12, 5 pins
Product Certifications
cULus
Accessory / Separate Part Category
cabling accessory
Contact Resistance
5000µOhm
Collar Material
metal
Cable Connector Fixing
screw-on
Series Name
general purpose
Ambient Air Temperature For Operation
-25-80°C static
Line Rated Current
3A
Accessory / Separate Part Type
pre-wired connectors
Cable Composition
5 x 0.25 mm²

Description

Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Wire Size 22 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
