  11. Cordset, 6.56 ft., Black, 250VAC/300VDC

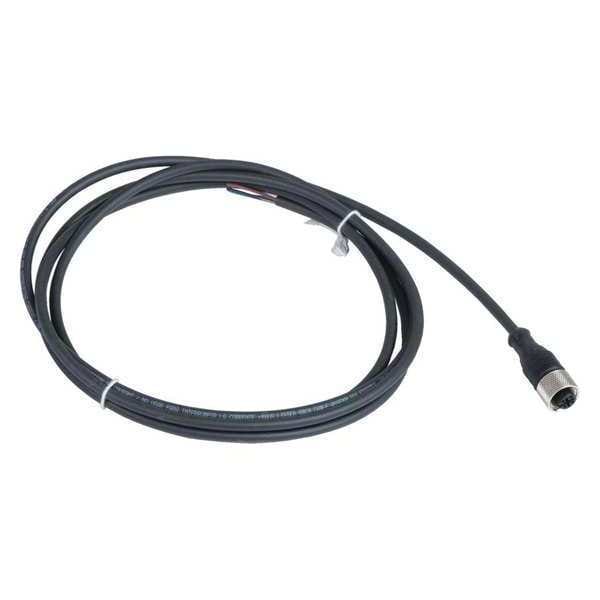

Telemecanique Sensors Cordset, 6.56 ft., Black, 250VAC/300VDC XZCP1141L2 - main

Cordset, 6.56 ft., Black, 250VAC/300VDC

  • Mfr # XZCP1141L2

  • Zoro # G6874217

product price: $19.15
/ea

Key Features

End 1 Number of Pins
4
Cable Length
2 m
Wire Size
18 AWG
IP Rating
IP65, IP67, IP69K
Max. Voltage
250VAC/300VDC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XZCP1141L2
Zoro #
G6874217
UPC #
785901348962
Country of Origin
Czechia

Dimensions

Cable Length
2 m
Wire Size
18 AWG
Cable Outer Diameter
5.2 mm

Details

Item
Cordset
End 1 Number of Pins
4
IP Rating
IP65, IP67, IP69K
Max. Voltage
250VAC/300VDC
Max. Amps
4 A
Standards
CSA Certified, IEC, UL Listed
End 1 Connection Type
M12
Temp. Range
-40 Degrees to 80 Degrees C
End 1 Gender and Plug End
Female Straight
End 2 Gender and Plug End
Bare Wire
Number of Conductors
4
Features
Good Resistance to Severe Mechanical Stress, Friction, Abrasion, Torsion, Hot and Cold Oils, Greases and Lubricants, Halogen Free
End 1 Keyway
Single
End 2 Connection Type
Bare Wire
End 1 Thread
M12
End 1 Number of Keyways
1
Cable Jacket Material
PUR
Cable Jacket Color
Black
End 1 Mounting Orientation
Straight
Maximum Operating Temperature
176 Degrees F
Minimum Operating Temperature
-13 Degrees F
Number of Wires
4
End 1 Gender
Female
Ambient Air Temperature For Operation
-40-80°C static || -5-80°C flexing
Product Certifications
cULus
Minimum Insulating Resistance
1 GΩ
Contact Resistance
5000µOhm
[Ue] Rated Operational Voltage
250 V AC || 300 V DC
Cable Connector Fixing
screw-on
Ambient Air Temperature For Storage
-40-80°C
Status Led
without
Cable Composition
4 x 0.34 mm²
Series Name
general purpose
Accessory / Separate Part Category
cabling accessory
Collar Material
metal
Electrical Connection
straight female connector M12, 4 pins
Accessory / Separate Part Type
pre-wired connectors
Line Rated Current
4A
Product Type
Single Ended

Description

Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
