  6. Cordset Pvc Female M8 3P Pnp Leds 90D 5M

This item is Discontinued.

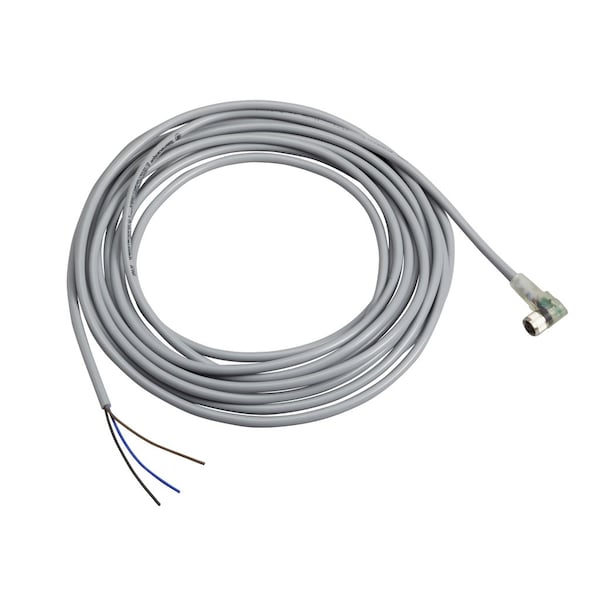

Telemecanique Sensors Cordset Pvc Female M8 3P Pnp Leds 90D 5M XZCPV0766L5

Cordset Pvc Female M8 3P Pnp Leds 90D 5M (Discontinued)

  • Mfr # XZCPV0766L5
  • Zoro # G0130031
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XZCPV0766L5
Zoro #
G0130031
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
5m
Cable Outer Diameter
4.6 mm

Details

Item
Pre Wired Connector
IP Rating
IP65, IP67
Number of Pins
3
Color
Blue, Brown, Black
Features
Mercury Free
Temp. Range
-13 Degrees to 176 Degrees F
Max. Amps
3A
Max. Voltage
30VAC/36VDC
Accessory / Separate Part Category
cabling accessory
Line Rated Current
3A
Series Name
general purpose
Status Led
2 PNP LEDs
Cable Composition
3 x 0.25 mm²
[Ue] Rated Operational Voltage
30 V AC || 36 V DC
Minimum Insulating Resistance
1 GΩ
Collar Material
metal
Ambient Air Temperature For Storage
-25-80°C
Wire Insulation Material
PVC
Product Certifications
cULus
Contact Resistance
5000µOhm
Cable Connector Fixing
screw-on
Ip Degree Of Protection
IP67 || IP65
Electrical Connection
elbowed female connector M8, 3 pins
Ambient Air Temperature For Operation
-25-80°C static
Accessory / Separate Part Type
pre-wired connectors

Description

Cordset Pvc Female M8 3P Pnp Leds 90D 5M
