  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 4 Wires, Shielded

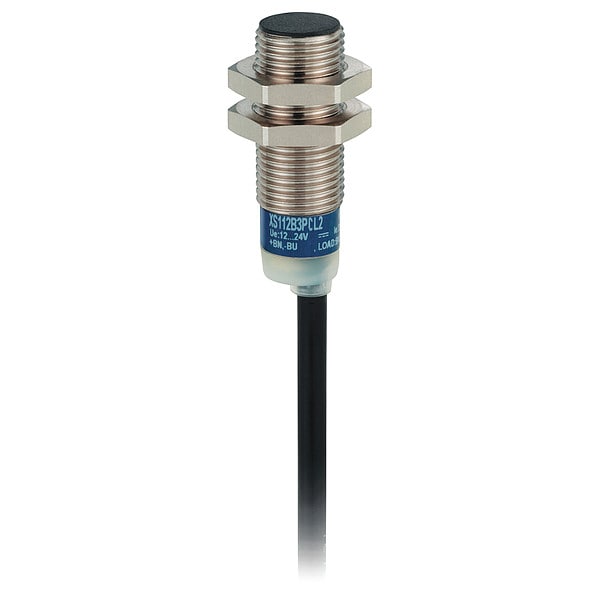

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 4 Wires, Shielded XS112B3PCL2 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 4 Wires, Shielded

  • Mfr # XS112B3PCL2

  • Zoro # G0195897

product price: $100.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
37 mm
Proximity Sensor Electrical Connection
2m Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS112B3PCL2
Zoro #
G0195897
UPC #
-
Country of Origin
France

Dimensions

Length
37 mm
Cable Length
2 m
Overall Diameter
12 mm
Overall Height
37 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
5,000 Hz
Includes
Safety Controller
Description/Special Features
Flush Mountable, Frontal Detection Face, Mercury Free, Output Signal Discrete
IP Rating
IP65, IP67
Electrical Connection
Bare Wire
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Standards
CE, CSA, E2, RoHS, UL Listed
Max. Current Load
200mA
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<2 V closed)
Application
mobile equipment; general purpose
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Supply Voltage Limits
9-36 V DC
Maximum Delay Response
0.1 ms
Switching Capacity
<= 200 mA overload and short-circuit protection
Maximum Delay First Up
5 ms
Differential Travel
1...15% of Sr
Series
XS1
Maximum Delay Recovery
0.1 ms
Output Circuit Type
PNP
Sensing Face Shielding
Shielded
Style
Cylindrical, Inductive
Body Material
Brass
Load Current - Maximum
200 mA
DC Voltage Rating
12-24V DC
Switching Frequency
2,500 Hz
Sensing Distance - Maximum
4 mm
Operating Temperature - Maximum
158 Degrees F
Output Circuit Number of Wires
4
Body Finish
Nickel Plated
Electrical Installation Type
Prewired Cable
AC Voltage Rating
Not Rated
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Contact Form
NO/NC
Includes Indicator Lights
Indicator Lights Included

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 5,000 Hz, Proximity Sensor Output Circuit Type 4 Wire PNP, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NO, IP Rating IP65, IP67, Case Material Nickel Plated Brass, Length 37 mm, Operating Temp. Range -13 Degrees F to 158 Degrees F, Max. Current Load 200mA
