  6. Cylindrical, Inductive Proximity Sensor, 17 mm Dia., Brass, M12, 3 Wires, Shielded

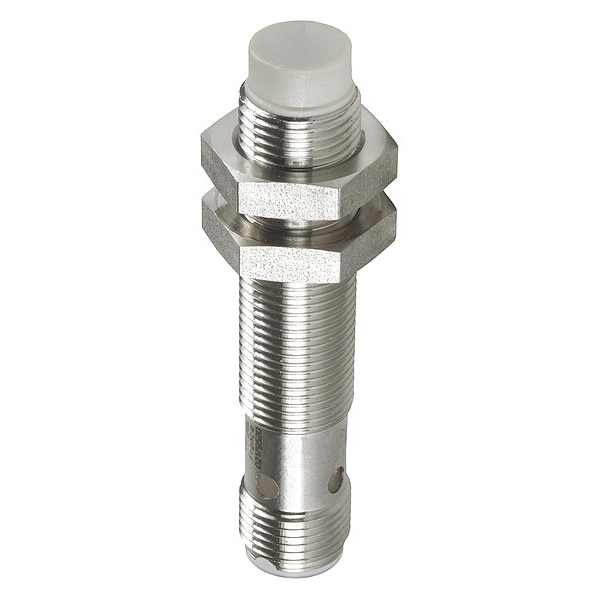

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 17 mm Dia., Brass, M12, 3 Wires, Shielded XS612B4PAM12 - main

Cylindrical, Inductive Proximity Sensor, 17 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS612B4PAM12

  • Zoro # G0860216

product price:  $84.89
/ea
Free Shipping & Returns

Key Features

Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
66 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS612B4PAM12
Zoro #
G0860216
UPC #
785901624813
Country of Origin
France

Dimensions

Length
66 mm
Overall Height
66 mm
Overall Diameter
17 mm

Details

Item
Proximity Sensor
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 2500 Hz DC
Electrical Connection
M12
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP67, IP69K
Standards
CE, CSA, E2, UL Listed
Operating Temp. Range
-25 to 70 Degrees C
Max. Current Load
10 mA
Maximum Delay Response
0.2 ms
Maximum Delay First Up
10 ms
Maximum Voltage Drop
<2 V closed)
Supply Voltage Limits
10-58 V DC
Body Type
fixed
Storage Temp. Range
-40-85 °C
Application
mobile equipment; general purpose
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Recovery
0.2 ms
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Series
XS6
Switching Frequency
2,500 Hz
Output Circuit Number of Wires
3
Sensing Distance - Minimum
4 mm
Body Material
Brass
Includes Indicator Lights
Indicator Lights Included
Style
Cylindrical, Inductive
Sensing Distance - Maximum
8 mm
Output Circuit Contact Form
NO
Electrical Installation Type
Direct Connector
Number of Pins
4
Operating Temperature - Maximum
158 Degrees F
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Sensing Face Shielding
Shielded
Output Circuit Type
PNP
DC Voltage Rating
12-48V DC
Operating Temperature - Minimum
-13 Degrees F
AC Voltage Rating
Not Rated
Body Finish
Nickel Plated

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, IP69K, Standards CE, CSA, E2, UL Listed
