  6. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded

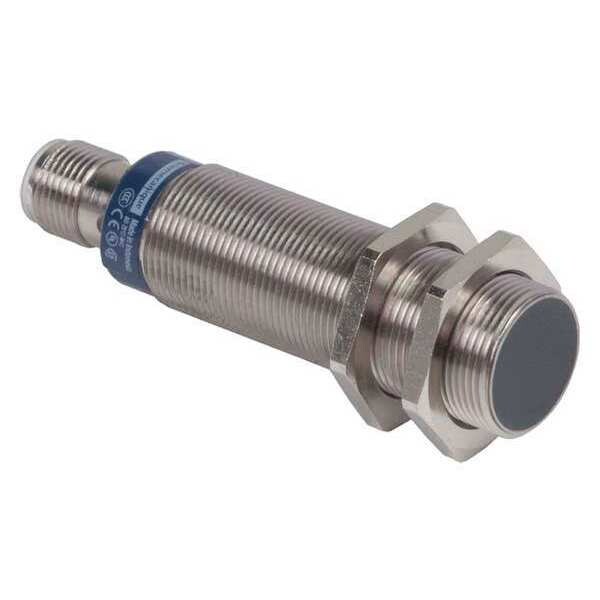

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded XS618B1NBM12 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS618B1NBM12

  • Zoro # G6793491

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
74 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS618B1NBM12
Zoro #
G6793491
UPC #
785901921929
Country of Origin
Multiple

Dimensions

Length
74 mm
Overall Height
74 mm
Overall Diameter
18 mm

Details

Item
Proximity Sensor
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
1,000 Hz
IP Rating
IP67, IP69K
Max. Current Load
200mA
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Standards
CE, CSA, E2, RoHS, UL Listed
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
M12
Supply Voltage Limits
10-58 V DC
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Delay First Up
10 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Differential Travel
1...15% of Sr
Maximum Voltage Drop
<2 V closed)
Body Type
fixed
Storage Temp. Range
-40-85 °C
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Series
XS6
Application
mobile equipment; general purpose
Maximum Delay Response
0.3 ms
Maximum Delay Recovery
0.7 ms
Output Circuit Contact Form
NC
Includes Indicator Lights
Indicator Lights Included
Number of Pins
4
Body Finish
Nickel Plated
Load Current - Maximum
200 mA
AC Voltage Rating
Not Rated
Body Material
Brass
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Direct Connector
Operating Temperature - Maximum
158 Degrees F
Sensing Face Shielding
Shielded
Output Circuit Number of Wires
3
DC Voltage Rating
12-48V DC
Output Circuit Type
NPN
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Style
Cylindrical, Inductive
Switching Frequency
1,000 Hz
Sensing Distance - Minimum
4 mm
Sensing Distance - Maximum
8 mm

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 74 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
