  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PPS, M12, 3 Wires, Unshielded

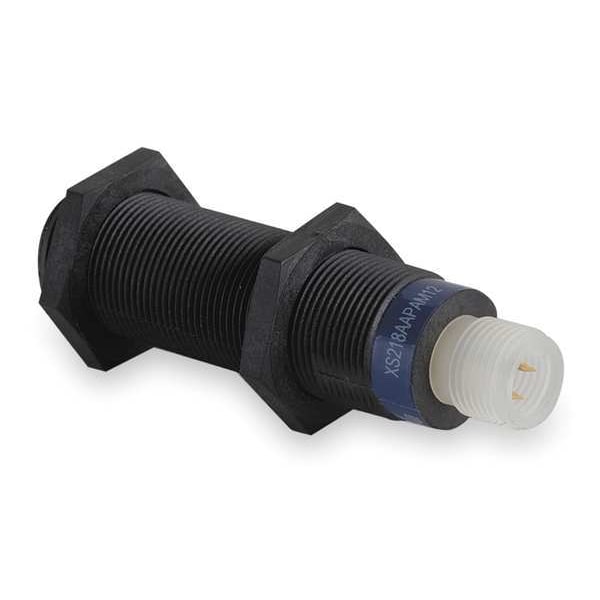

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PPS, M12, 3 Wires, Unshielded XS218AAPAM12 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PPS, M12, 3 Wires, Unshielded

  • Mfr # XS218AAPAM12

  • Zoro # G1696362

product price: $68.79
/ea

Key Features

Measurement Range
8 to 15 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
41 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS218AAPAM12
Zoro #
G1696362
UPC #
785901804123
Country of Origin
France

Dimensions

Length
41 mm
Overall Height
70 mm
Overall Diameter
18 mm

Details

Item
Proximity Sensor
Measurement Range
8 to 15 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
1,000 Hz
Operating Temp. Range
-13 Degrees to 185 Degrees F
Standards
CCC, CE, CSA, RoHS, UL Listed
IP Rating
IP67, IP69K
Max. Current Load
200mA
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Electrical Connection
M12
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Series
XS2
Maximum Delay Recovery
0.7 ms
Switching Capacity
<= 200 mA overload and short-circuit protection
Supply Voltage Limits
10-58 V DC
Body Type
fixed
Application
food and beverage
Maximum Delay First Up
10 ms
Maximum Voltage Drop
<2 V closed)
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
0.3 ms
Output Circuit Number of Wires
3
Body Material
PPS
Includes Indicator Lights
Indicator Lights Included
Number of Pins
4
Sensing Distance - Minimum
8 mm
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Contact Form
NO
NEMA Enclosure Rating
4X
Electrical Installation Type
Direct Connector
Operating Temperature - Maximum
185 Degrees F
Load Current - Maximum
200 mA
Style
Cylindrical, Inductive
DC Voltage Rating
12-48V DC
AC Voltage Rating
Not Rated
Sensing Distance - Maximum
15 mm
Body Finish
Nickel Plated
Sensing Face Shielding
Unshielded
Output Circuit Type
PNP
Switching Frequency
1,000 Hz

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F, Max. Current Load 200mA
