  6. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PPS, 10 m, Bare Wire, 3 Wires, Unshielded

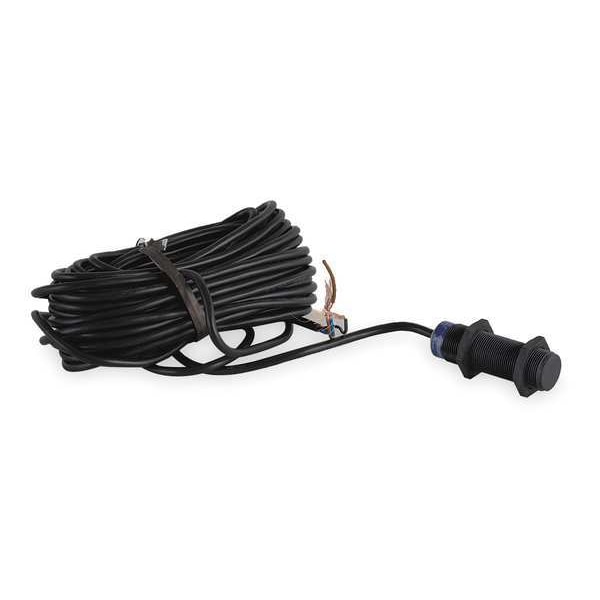

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PPS, 10 m, Bare Wire, 3 Wires, Unshielded XS218AAPAL10 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., PPS, 10 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # XS218AAPAL10

  • Zoro # G3085126

product price:  $81.15
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
8 to 15 mm
Overall Diameter
18 mm
Proximity Sensing Method
Inductive
Body Material
PPS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS218AAPAL10
Zoro #
G3085126
UPC #
785901673736
Country of Origin
France

Dimensions

Overall Diameter
18 mm
Cable Length
10 m
Length
41 mm
Overall Height
60 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
8 to 15 mm
Proximity Sensing Method
Inductive
Body Material
PPS
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
Bare Wire
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
15 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-48V DC
Output Circuit Contact Form
NO
Standards
CCC, CE, CSA, RoHS, UL Listed
Proximity Sensor Electrical Connection
10m Cable
Proximity Sensor Operating Frequency
1,000 Hz
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Operating Temp. Range
-13 Degrees to 185 Degrees F
IP Rating
IP68, IP69K
Max. Current Load
200mA
Supply Voltage Limits
10-58 V DC
Switching Capacity
<= 200 mA overload and short-circuit protection
Storage Temp. Range
-40-85 °C
Body Type
fixed
Maximum Voltage Drop
<2 V closed)
Series
XS2
Maximum Delay Recovery
0.7 ms
Application
food and beverage
Maximum Delay First Up
10 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Differential Travel
1...15% of Sr
Maximum Delay Response
0.3 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
NEMA Enclosure Rating
4X
Body Finish
Nickel Plated
Load Current - Maximum
200 mA
Switching Frequency
1,000 Hz
Operating Temperature - Minimum
-13 Degrees F
Includes Indicator Lights
Indicator Lights Included
Electrical Installation Type
Prewired Cable
Operating Temperature - Maximum
185 Degrees F
Sensing Distance - Minimum
8 mm

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 10m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F, Max. Current Load 200mA
