  11. Cylindrical, Inductive Proximity Sensor, 24 mm Dia., Brass, 10 m, Bare Wire, 2 Wires, Shielded

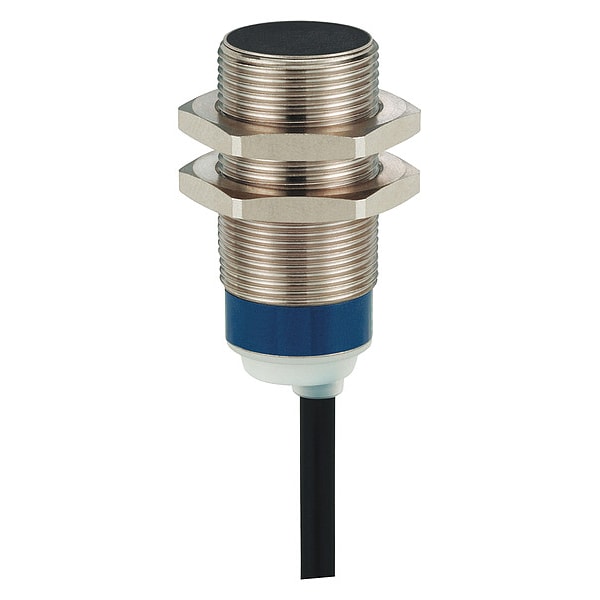

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 24 mm Dia., Brass, 10 m, Bare Wire, 2 Wires, Shielded XS618B1MAL10 - main

Cylindrical, Inductive Proximity Sensor, 24 mm Dia., Brass, 10 m, Bare Wire, 2 Wires, Shielded

  • Mfr # XS618B1MAL10

  • Zoro # G0564265

product price: $109.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
62 mm
Proximity Sensor Electrical Connection
Cable Connection
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS618B1MAL10
Zoro #
G0564265
UPC #
785901861027
Country of Origin
France

Dimensions

Length
62 mm
Cable Length
10 m
Overall Diameter
24 mm
Overall Height
62 mm

Details

Item
Proximity Sensor
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz DC; Less than Or Equal to 25 Hz AC
Standards
CE, CSA, UL Listed
Electrical Connection
Bare Wire
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP68, IP69K
Operating Temp. Range
-25 to 70 Degrees C
Application
general purpose
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.5 ms
Differential Travel
1...15% of Sr
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Series
XS6
Supply Voltage Limits
20-264 V AC/DC
Maximum Voltage Drop
<5.5 V closed)
Maximum Delay Recovery
0.5 ms
Maximum Delay First Up
25 ms
Switching Capacity
5...200 mA DC || 5...300 mA AC
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Prewired Cable
Style
Cylindrical, Inductive
DC Voltage Rating
24-240V DC
Includes Indicator Lights
Indicator Lights Included
AC Voltage Rating
24-240V AC
Body Finish
Nickel Plated
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
8 mm
Output Circuit Number of Wires
2
Features
Flush Mountable
Sensing Distance - Minimum
4 mm
Switching Frequency
1,000 Hz (DC), 25 Hz (AC)
Output Circuit Contact Form
NO
Body Material
Brass
Output Circuit Type
AC/DC-Type

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP68, IP69K, Standards CE, CSA, UL Listed
