  11. Cylindrical, Inductive Proximity Sensor, 24 mm Dia., Brass, M12, 2 Wires, Shielded

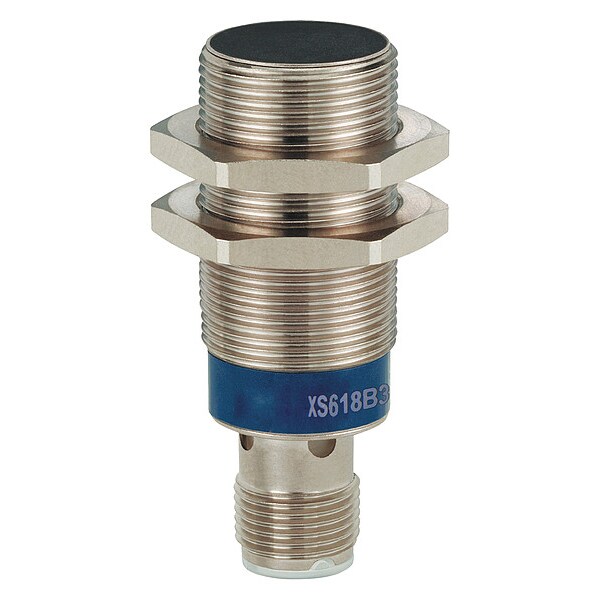

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 24 mm Dia., Brass, M12, 2 Wires, Shielded XS618B3DBM12 - main

Cylindrical, Inductive Proximity Sensor, 24 mm Dia., Brass, M12, 2 Wires, Shielded

  • Mfr # XS618B3DBM12

  • Zoro # G0860128

product price: $85.85
/ea
Free Shipping & Returns

Key Features

Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
50 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS618B3DBM12
Zoro #
G0860128
UPC #
785901947226
Country of Origin
France

Dimensions

Length
50 mm
Overall Diameter
24 mm
Overall Height
50 mm

Details

Item
Proximity Sensor
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz DC
Standards
CE, CSA, UL Listed
IP Rating
IP67, IP69K
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Electrical Connection
M12
Differential Travel
1...15% of Sr
Maximum Delay First Up
10 ms
Body Type
fixed
Series
XS6
Supply Voltage Limits
10-36 V DC
Application
general purpose
Maximum Voltage Drop
<4 V closed)
Maximum Delay Response
0.3 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-40-85 °C
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Maximum Delay Recovery
0.3 ms
Sensing Face Shielding
Shielded
Output Circuit Number of Wires
2
Switching Frequency
1,000 Hz
Operating Temperature - Minimum
-13 Degrees F
AC Voltage Rating
Not Rated
Output Circuit Contact Form
NC
Body Material
Brass
Operating Temperature - Maximum
158 Degrees F
Body Finish
Nickel Plated
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
8 mm
Style
Cylindrical, Inductive
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
DC Voltage Rating
12-24V DC
Number of Pins
4
Sensing Distance - Minimum
4 mm
Output Circuit Type
DC-Type

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, IP69K, Standards CE, CSA, UL Listed
