  11. Cylindrical, Inductive Proximity Sensor, 24 mm Dia., PBT, 2 m, Bare Wire, 3 Wires, Shielded

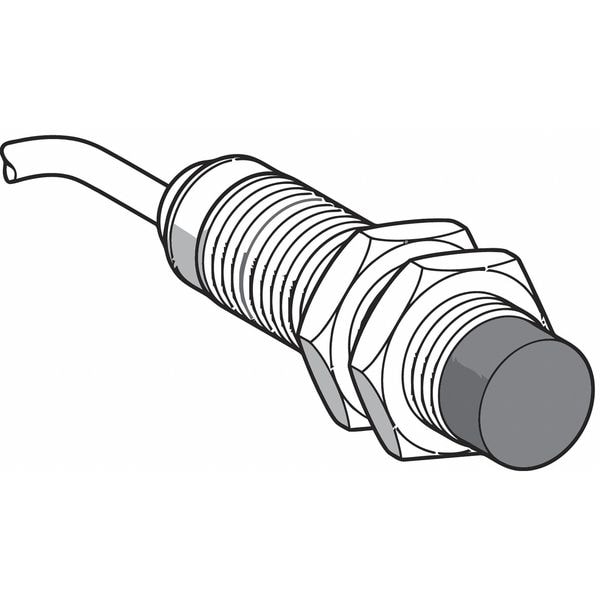

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 24 mm Dia., PBT, 2 m, Bare Wire, 3 Wires, Shielded XS4P18AB110 - main

Cylindrical, Inductive Proximity Sensor, 24 mm Dia., PBT, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS4P18AB110

  • Zoro # G0478101

product price: $275.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0.8 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 48V DC
Length
41 mm
Depth
18 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS4P18AB110
Zoro #
G0478101
UPC #
785901721833
Country of Origin
France

Dimensions

Length
41 mm
Depth
18 mm
Cable Length
2 m
Overall Height
41 mm
Overall Diameter
24 mm

Details

Item
Proximity Sensor
Measurement Range
0.8 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 48V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 500 Hz
IP Rating
IP67
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face
Standards
CCC, CE, CSA, UL Listed
Max. Current Load
4 mA
Electrical Connection
Bare Wire
Application
Application
Body Type
fixed
Series
XS4
Supply Voltage Limits
15-58 V DC
Includes Indicator Lights
No Indicator Lights Included
Style
Cylindrical, Inductive
Switching Frequency
500 Hz
Operating Temperature - Minimum
-13 Degrees F
Sensing Face Shielding
Shielded
Operating Temperature - Maximum
158 Degrees F
Output Circuit Voltage - Maximum
10 V
Output Circuit Voltage - Minimum
0 V
Output Circuit Number of Wires
3
AC Voltage Rating
Not Rated
Body Material
PBT
DC Voltage Rating
24-48V DC
Electrical Installation Type
Prewired Cable
Sensing Distance - Maximum
8 mm
Output Circuit Type
AC/DC-Type

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, Standards CCC, CE, CSA, UL Listed
