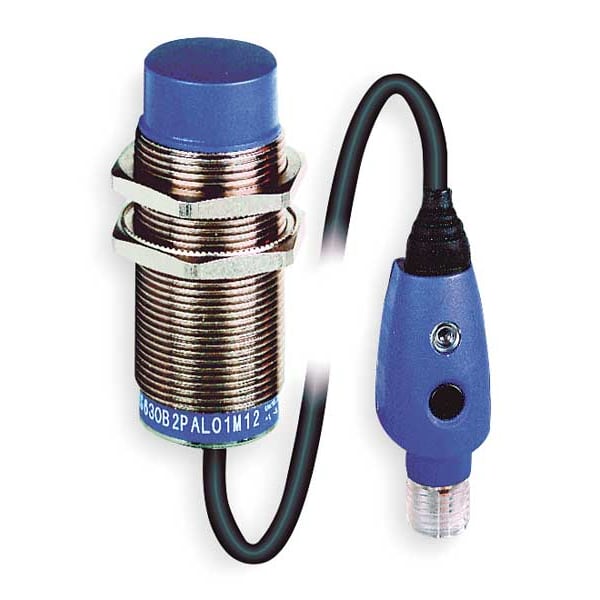

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 0.15 m, M12, 3 Wires, Shielded XS630B2PAL01M12 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 0.15 m, M12, 3 Wires, Shielded

  • Mfr # XS630B2PAL01M12

  • Zoro # G2715842

product price:  $186.99
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
15 to 40 mm
Overall Diameter
30 mm
Proximity Sensing Method
Inductive
Body Material
Brass
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XS630B2PAL01M12
Zoro #
G2715842
UPC #
785901455684
Country of Origin
France

Dimensions

Overall Diameter
30 mm
Cable Length
0.15 m
Length
41 mm
Overall Height
63 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
40 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-24V DC
Output Circuit Contact Form
NO
Standards
CE, CSA, RoHS, UL Listed
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
1,000 Hz
Description/Special Features
LED Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
Max. Current Load
100mA
IP Rating
IP67, IP69K
Maximum Delay First Up
10 ms
Series
XS6
Body Type
fixed
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Maximum Delay Response
0.3 ms
Differential Travel
1...15% of Sr
Maximum Delay Recovery
0.7 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Application
Application
Supply Voltage Limits
10-36 V DC
Storage Temp. Range
-40-85 °C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Voltage Drop
<2 V closed)
Body Finish
Nickel Plated
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
100 mA
Number of Pins
4
NEMA Enclosure Rating
4X
Operating Temperature - Maximum
158 Degrees F
Switching Frequency
1,000 Hz
Sensing Distance - Minimum
15 mm

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 18 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
