  6. Cylindrical, Inductive Proximity Sensor, 17 mm Dia., Brass, M12, 3 Wires, Shielded

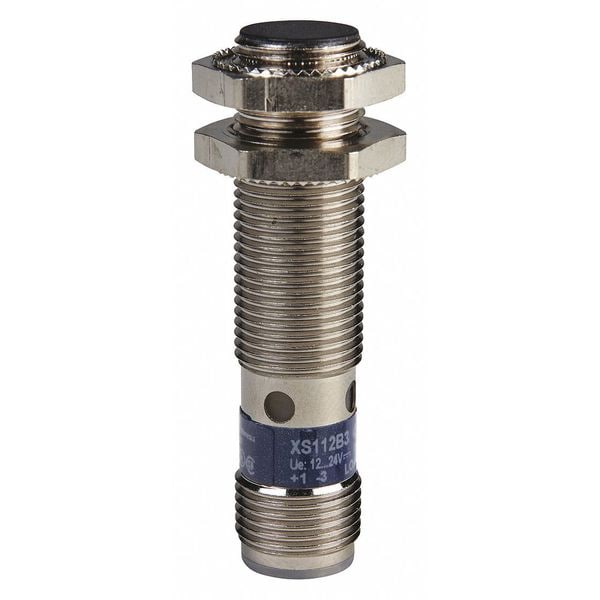

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 17 mm Dia., Brass, M12, 3 Wires, Shielded XS112B3PAM12 - main

Cylindrical, Inductive Proximity Sensor, 17 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS112B3PAM12

  • Zoro # G0563766

product price:  $78.55
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
0 to 3.2 mm
Overall Diameter
17 mm
Proximity Sensing Method
Inductive
Body Material
Brass
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XS112B3PAM12
Zoro #
G0563766
UPC #
785901677628
Country of Origin
Multiple

Dimensions

Overall Diameter
17 mm
Length
50 mm
Overall Height
50 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
4 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-24V DC
Output Circuit Contact Form
NO
Standards
CE, CSA, E2, UL Listed
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 2500 Hz
Operating Temp. Range
-25 to 70 Degrees C
Max. Current Load
10 mA
IP Rating
IP65, IP67
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Switching Capacity
<= 200 mA overload and short-circuit protection
Application
mobile equipment; general purpose
Maximum Delay Recovery
0.2 ms
Maximum Delay Response
0.2 ms
Differential Travel
1...15% of Sr
Supply Voltage Limits
10-36 V DC
Series
XS1
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay First Up
10 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<2 V closed)
Body Type
fixed
Includes Indicator Lights
Indicator Lights Included
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Body Finish
Nickel Plated
Number of Pins
4
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
2,500 Hz
Electrical Installation Type
Direct Connector

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP65, IP67, Standards CE, CSA, E2, UL Listed
