  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded

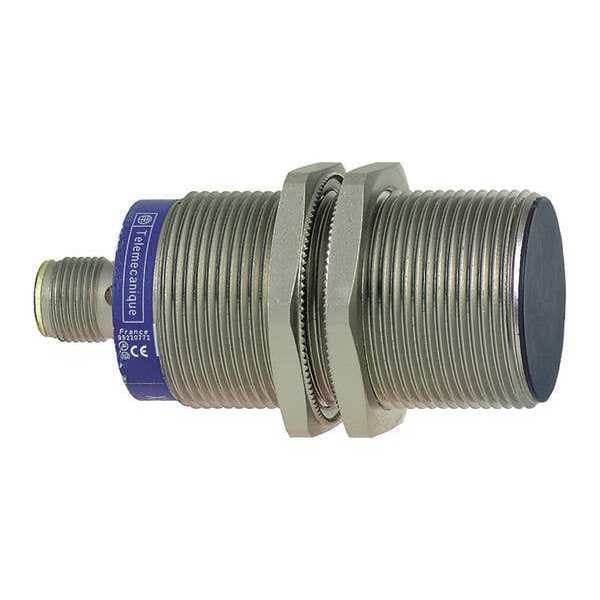

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded XS530B1MAL2 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # XS530B1MAL2

  • Zoro # G6205421

product price: $106.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
62 mm
Proximity Sensor Electrical Connection
2m Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS530B1MAL2
Zoro #
G6205421
UPC #
03389119046947
Country of Origin
France

Dimensions

Length
62 mm
Cable Length
2 m
Overall Diameter
30 mm
Overall Height
62 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
500 Hz
Standards
CE, CSA, RoHS, UL Listed
IP Rating
IP68, IP69K
Max. Current Load
200mA
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
Bare Wire
Differential Travel
1...15% of Sr
Series
XS5
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<5.5 V closed)
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
0.5 ms
Switching Capacity
5...200 mA DC || 5...300 mA AC
Supply Voltage Limits
20-264 V AC/DC
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay First Up
25 ms
Application
general purpose
Body Type
fixed
Maximum Delay Recovery
2 ms
AC Voltage Rating
24-240V AC
Body Material
Brass
Switching Frequency
25 Hz (AC), 500 Hz (DC)
Output Circuit Contact Form
NO
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
300 mA
Sensing Distance - Maximum
10 mm
Electrical Installation Type
Prewired Cable
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Output Circuit Number of Wires
2
Sensing Face Shielding
Shielded
Output Circuit Type
AC/DC-Type
Operating Temperature - Maximum
158 Degrees F
DC Voltage Rating
24-240V DC
Body Finish
Nickel Plated
Style
Cylindrical, Inductive
Includes Indicator Lights
Indicator Lights Included

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP68, IP69K, Case Material Nickel Plated Brass, Length 62 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
