  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

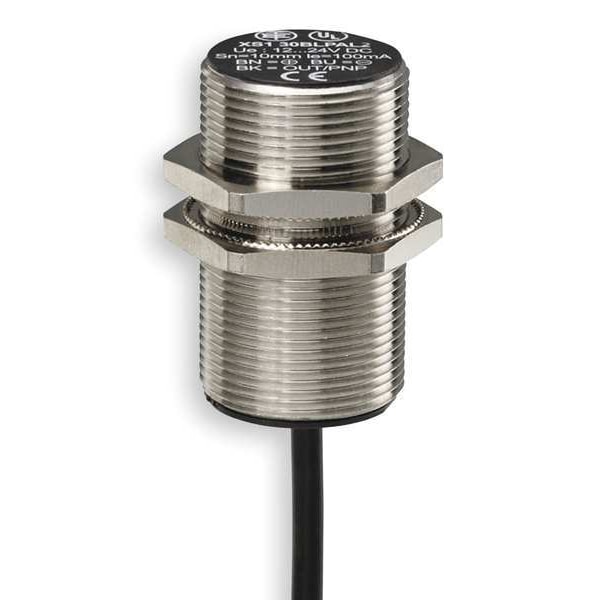

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded XS130BLPAL2 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS130BLPAL2

  • Zoro # G1503196

product price: $52.35
/ea

Key Features

Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
41 mm
Proximity Sensor Electrical Connection
2m Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS130BLPAL2
Zoro #
G1503196
UPC #
785901926344
Country of Origin
Indonesia

Dimensions

Length
41 mm
Overall Height
57 mm
Overall Diameter
30 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
200 Hz
Case Material
Nickel Plated Brass
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP67
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Max. Current Load
100mA
Standards
CE, CSA, RoHS, UL Listed
Electrical Connection
Bare Wire
Series
XS1
Differential Travel
1...15% of Sr
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 200 mA overload and short-circuit protection
Maximum Delay Recovery
1 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Application
general purpose
Maximum Delay First Up
15 ms
Maximum Delay Response
0.1 ms
Supply Voltage Limits
10-36 V DC
Body Type
fixed
Storage Temp. Range
-40-85 °C
Body Finish
Nickel Plated
Switching Frequency
500 Hz
Sensing Face Shielding
Shielded
Style
Cylindrical, Inductive
Output Circuit Number of Wires
3
Electrical Installation Type
Prewired Cable
Includes Indicator Lights
Indicator Lights Included
NEMA Enclosure Rating
4X
Body Material
Brass
Operating Temperature - Maximum
158 Degrees F
Sensing Distance - Maximum
10 mm
DC Voltage Rating
12-24V DC
AC Voltage Rating
Not Rated
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
PNP
Output Circuit Contact Form
NO
Load Current - Maximum
200 mA

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 200 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
